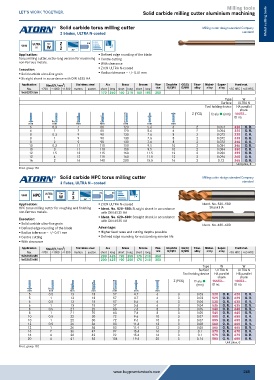

Milling tools
Solid carbide milling cutter aluminium machining

Solid carbide torus milling cutter Milling cutter design standard Company Metal cutting tools
2 blades, ULTRA N-coated standard

ULTRA Typ Z HA
VHM W
N 2
Application: ƒ Defined edge rounding of the blade
Torus milling cutter, extra-long version for machining ƒ Centre cutting
non-ferrous metals. ƒ With clearance
Execution: ƒ ZrCN ULTRA N-coated
ƒ Solid carbide ultra-fine grain ƒ Radius tolerance = +/- 0.01 mm
ƒ Straight shank in accordance with DIN 6535 HA
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16653320-365 170 360 160 210 150 180 300
Type W
Surface ULTRA N
Tool holding device HA parallel
shank
Z (PCS) fz alu ˜ (mm) 16653...
ID no.
mm mm mm mm mm mm mm
6 0.3 7 80 120 5.6 6 2 0.054 320 O. R.
6 1 7 80 120 5.6 6 2 0.054 325 O. R.
8 0.3 9 90 130 7.6 8 2 0.072 330 O. R.
8 1 9 90 130 7.6 8 2 0.072 335 O. R.
8 2 9 90 130 7.6 8 2 0.072 340 O. R.
10 0.3 11 110 150 9.5 10 2 0.084 345 O. R.
10 3 11 110 150 9.5 10 2 0.084 350 O. R.
12 1.5 12 115 160 11.5 12 2 0.096 355 O. R.
12 4 12 115 160 11.5 12 2 0.096 360 O. R.
16 2 16 140 200 15.5 16 2 0.12 365 O. R.
Unit price, €
Prod. group 152
Solid carbide HPC torus milling cutter Milling cutter design standard Company
3 flutes, ULTRA N - coated standard

Z
Typ
VHM HPC ULTRA W 3 HA HB
N
Application: ƒ ZrCN ULTRA N-coated Ident. No. 520–580
HPC torus milling cutter for roughing and finishing ƒ Ident. No. 520–580: Straight shank in accordance Shank HA
non-ferrous metals. with DIN 6535 HA
Execution: ƒ Ident. No. 620–680: Straight shank in accordance
with DIN 6535 HB
ƒ Solid carbide ultra-fine grain Ident. No. 620–680
ƒ Defined edge rounding of the blade Advantage:
ƒ Radius tolerance = +/- 0.01 mm ƒ Higher feed rates and cutting depths possible
ƒ Centre cutting ƒ Defined edge rounding for outstanding service life
ƒ With clearance
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16653520-580 200 425 190 250 175 210 350
16653620-680 200 425 190 250 175 210 350
Type W W
Surface ULTRA N ULTRA N
Tool holding device HA parallel HB parallel
shank shank
Z (PCS) fz alu ˜ 16653... 16653...
(mm) ID no. ID no.
mm mm mm mm mm mm mm
5 0.5 13 18 57 4.7 6 3 0.03 520 O. R. 620 O. R.
5 1 13 18 57 4.7 6 3 0.03 525 O. R. 625 O. R.
6 0.5 13 18 57 5.6 6 3 0.04 530 O. R. 630 O. R.
6 1 13 18 57 5.6 6 3 0.04 535 O. R. 635 O. R.
8 0.5 21 25 63 7.6 8 3 0.05 540 O. R. 640 O. R.
8 1 21 25 63 7.6 8 3 0.05 545 O. R. 645 O. R.
10 0.5 22 30 72 9.6 10 3 0.07 550 O. R. 650 O. R.
10 1 22 30 72 9.6 10 3 0.07 555 O. R. 655 O. R.
12 0.5 26 36 83 11.4 12 3 0.08 560 O. R. 660 O. R.
12 1 26 36 83 11.4 12 3 0.08 565 O. R. 665 O. R.
16 2 36 42 92 15.4 16 3 0.1 570 O. R. 670 O. R.
16 4 36 42 92 15.4 16 3 0.1 575 O. R. 675 O. R.
20 4 41 52 104 19.4 20 3 0.14 580 O. R. 680 O. R.
Unit price, €
Prod. group 152
