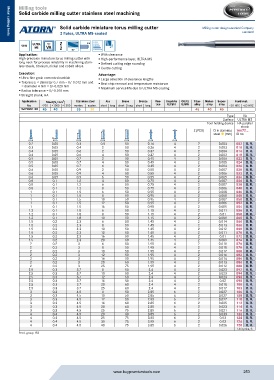

P. 253
Milling tools
Solid carbide milling cutter stainless steel machining
Solid carbide miniature torus milling cutter Milling cutter design standard Company
2 flutes, ULTRA MS-coated standard
Metal cutting tools
Metal cutting tools
ULTRA Typ Z HA
VHM VA
MS 2
Application: With clearance
High-precision miniature torus milling cutter with High-performance layer, ULTRA MS
long neck for process reliability in machining stain- Defined cutting edge rounding
less steels, titanium, nickel and cobalt alloys.
Centre cutting
Execution: Advantage:
Ultra-fine grain cemented carbide Large selection of clearance lengths
Tolerance: < diameter 0.7 mm = 0/-0.012 mm and Best chip removal and temperature resistance
< diameter 4 mm = 0/-0.020 mm
Radius tolerance = 0/-0.010 mm Maximum service life due to ULTRA MS coating
Straight shank, HA
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16672002-128 45 40 35 30 45 40 45
Type VA
Surface ULTRA MS
Tool holding device HA parallel
shank
Z (PCS) fz in stainless 16672...
steel (mm) ID no.
mm mm mm mm mm mm mm
0.2 0.05 0.3 0.5 50 0.16 4 2 0.003 002 O. R.
0.3 0.05 0.4 2 50 0.26 4 2 0.003 010 O. R.
0.4 0.05 0.6 2 50 0.37 4 2 0.004 014 O. R.
0.4 0.05 0.6 4 50 0.37 4 2 0.003 018 O. R.
0.5 0.05 0.7 2 50 0.45 4 2 0.006 022 O. R.
0.5 0.05 0.7 4 50 0.45 4 2 0.005 024 O. R.
0.5 0.05 0.7 6 50 0.45 4 2 0.004 026 O. R.
0.6 0.05 0.9 2 50 0.55 4 2 0.007 030 O. R.
0.6 0.05 0.9 4 50 0.55 4 2 0.006 032 O. R.
0.6 0.05 0.9 6 50 0.55 4 2 0.005 034 O. R.
0.8 0.1 1.2 4 50 0.75 4 2 0.007 036 O. R.
0.8 0.1 1.2 6 50 0.75 4 2 0.007 038 O. R.
0.8 0.1 1.2 8 50 0.75 4 2 0.006 040 O. R.
1 0.1 1.5 6 50 0.95 4 2 0.008 046 O. R.
1 0.1 1.5 8 50 0.95 4 2 0.008 048 O. R.
1 0.1 1.5 10 50 0.95 4 2 0.007 050 O. R.
1 0.1 1.5 12 50 0.95 4 2 0.006 052 O. R.
1 0.1 1.5 16 50 0.95 4 2 0.005 054 O. R.
1.2 0.1 1.8 6 50 1.15 4 2 0.011 056 O. R.
1.2 0.1 1.8 8 50 1.15 4 2 0.01 058 O. R.
1.2 0.1 1.8 10 50 1.15 4 2 0.009 060 O. R.
1.5 0.2 2.3 6 50 1.45 4 2 0.014 064 O. R.
1.5 0.2 2.3 8 50 1.45 4 2 0.013 066 O. R.
1.5 0.2 2.3 10 50 1.45 4 2 0.012 068 O. R.
1.5 0.2 2.3 12 50 1.45 4 2 0.011 070 O. R.
1.5 0.2 2.3 16 50 1.45 4 2 0.01 072 O. R.
1.5 0.2 2.3 20 60 1.45 4 2 0.009 074 O. R.
2 0.2 3 6 50 1.95 4 2 0.018 076 O. R.
2 0.2 3 8 50 1.95 4 2 0.018 078 O. R.
2 0.2 3 10 50 1.95 4 2 0.017 080 O. R.
2 0.2 3 12 50 1.95 4 2 0.016 082 O. R.
2 0.2 3 16 50 1.95 4 2 0.014 084 O. R.
2 0.2 3 20 60 1.95 4 2 0.013 086 O. R.
2 0.2 3 25 75 1.95 4 2 0.012 088 O. R.
2.5 0.3 3.7 8 50 2.4 4 2 0.023 092 O. R.
2.5 0.3 3.7 10 50 2.4 4 2 0.023 094 O. R.
2.5 0.3 3.7 12 50 2.4 4 2 0.023 096 O. R.
2.5 0.3 3.7 16 50 2.4 4 2 0.02 098 O. R.
2.5 0.3 3.7 20 60 2.4 4 2 0.018 100 O. R.
2.5 0.3 3.7 25 60 2.4 4 2 0.017 102 O. R.
3 0.3 4.5 8 50 2.85 6 2 0.027 106 O. R.
3 0.3 4.5 10 50 2.85 6 2 0.027 108 O. R.
3 0.3 4.5 12 50 2.85 6 2 0.027 110 O. R.
3 0.3 4.5 16 60 2.85 6 2 0.025 112 O. R.
3 0.3 4.5 20 60 2.85 6 2 0.023 114 O. R.
3 0.3 4.5 25 75 2.85 6 2 0.021 116 O. R.
4 0.4 4.5 20 60 3.85 6 2 0.033 122 O. R.
4 0.4 4.5 25 75 3.85 6 2 0.03 124 O. R.
4 0.4 4.5 30 75 3.85 6 2 0.03 126 O. R.
4 0.4 4.5 40 75 3.85 6 2 0.026 128 O. R.
Unit price, €
Prod. group 152
