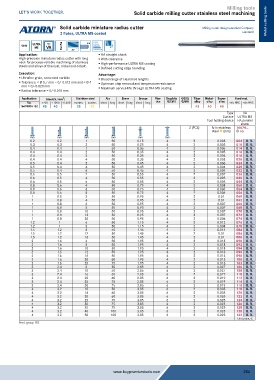

P. 254
Milling tools
Solid carbide milling cutter stainless steel machining
Solid carbide miniature radius cutter Milling cutter design standard Company Metal cutting tools
2 flutes, ULTRA MS coated standard
ULTRA Typ Z HA
VHM VA
MS 2
Application: HA straight shank
High-precision miniature radius cutter with long With clearance
neck for process-reliable machining of stainless High-performance ULTRA MS coating
steels and alloys of titanium, nickel and cobalt.
Defined cutting edge rounding
Execution: Advantage:
Ultrafine grain, cemented carbide Broad range of clearance lengths
Tolerance: < Ø 0.7 mm = 0/-0.012 mm and < Ø 4 Optimum chip removal and temperature resistance
mm = 0/-0.020 mm
Radius tolerance = 0/-0.010 mm Maximum service life through ULTRA MS coating
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16674004-132 45 40 35 30 45 40 45
Type VA
Surface ULTRA MS
Tool holding device HA parallel
shank
Z (PCS) fz in stainless 16674...
steel (mm) ID no.
mm mm mm mm mm mm
0.2 0.2 1 50 0.15 4 2 0.003 004 O. R.
0.3 0.3 2 50 0.25 4 2 0.003 010 O. R.
0.4 0.4 1 50 0.35 4 2 0.005 014 O. R.
0.4 0.4 2 50 0.35 4 2 0.005 016 O. R.
0.4 0.4 3 50 0.35 4 2 0.003 018 O. R.
0.4 0.4 4 50 0.35 4 2 0.003 020 O. R.
0.5 0.4 2 50 0.45 4 2 0.006 024 O. R.
0.5 0.4 4 50 0.45 4 2 0.004 028 O. R.
0.5 0.4 6 50 0.45 4 2 0.004 032 O. R.
0.6 0.5 2 50 0.55 4 2 0.007 036 O. R.
0.6 0.5 4 50 0.55 4 2 0.005 040 O. R.
0.6 0.5 6 50 0.55 4 2 0.005 044 O. R.
0.8 0.6 4 50 0.75 4 2 0.008 050 O. R.
0.8 0.6 6 50 0.75 4 2 0.006 054 O. R.
0.8 0.6 8 50 0.75 4 2 0.006 056 O. R.
1 0.8 3 50 0.95 4 2 0.01 060 O. R.
1 0.8 4 50 0.95 4 2 0.01 062 O. R.
1 0.8 6 50 0.95 4 2 0.007 066 O. R.
1 0.8 8 50 0.95 4 2 0.007 068 O. R.
1 0.8 10 50 0.95 4 2 0.007 070 O. R.
1 0.8 12 50 0.95 4 2 0.007 072 O. R.
1 0.8 20 50 0.95 4 2 0.006 074 O. R.
1.2 1 6 50 1.15 4 2 0.012 076 O. R.
1.2 1 8 50 1.15 4 2 0.008 078 O. R.
1.5 1.2 8 50 1.45 4 2 0.014 084 O. R.
1.5 1.2 12 50 1.45 4 2 0.01 086 O. R.
1.5 1.2 16 50 1.45 4 2 0.01 088 O. R.
2 1.6 6 50 1.95 4 2 0.018 090 O. R.
2 1.6 8 50 1.95 4 2 0.018 092 O. R.
2 1.6 10 50 1.95 4 2 0.018 094 O. R.
2 1.6 12 50 1.95 4 2 0.013 096 O. R.
2 1.6 16 50 1.95 4 2 0.013 098 O. R.
2 1.6 20 60 1.95 4 2 0.013 100 O. R.
2 1.6 25 75 1.95 4 2 0.013 102 O. R.
3 2.4 8 50 2.85 6 2 0.027 106 O. R.
3 2.4 10 50 2.85 6 2 0.027 108 O. R.
3 2.4 16 60 2.85 6 2 0.027 110 O. R.
3 2.4 20 60 2.85 6 2 0.019 112 O. R.
3 2.4 25 75 2.85 6 2 0.019 114 O. R.
3 2.4 30 75 2.85 6 2 0.019 116 O. R.
4 3.2 10 50 3.85 6 2 0.035 118 O. R.
4 3.2 16 60 3.85 6 2 0.035 120 O. R.
4 3.2 20 60 3.85 6 2 0.035 122 O. R.
4 3.2 25 75 3.85 6 2 0.025 124 O. R.
4 3.2 30 75 3.85 6 2 0.025 126 O. R.
4 3.2 35 75 3.85 6 2 0.025 128 O. R.
4 3.2 40 100 3.85 6 2 0.025 130 O. R.
4 3.2 50 100 3.85 6 2 0.025 132 O. R.
Unit price, €
Prod. group 152
