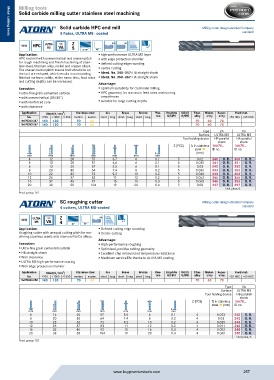

Page 257 - Buy Premium Tools ATORN Catalogue

Milling tools
Solid carbide milling cutter stainless steel machining

Solid carbide HPC end mill Milling cutter design standard Company
5 flutes, ULTRA MS - coated standard
Metal cutting tools
Metal cutting tools
Typ
VHM HPC ULTRA VA Z HB HA
MS 5 35°/38° 45°
Application: ƒ high-performance ULTRA MS layer
HPC end mill with uneven helical and uneven pitch ƒ with edge protection chamfer
for rough machining and finish machining of stain- ƒ defined cutting edge rounding
less steel, titanium alloy, nickel and copper alloys. ƒ centre cutting
The uneven helical pitch means that vibrations on
the tool are reduced, which results in outstanding ƒ Ident. No. 340–347: HB straight shank
finished surfaces, while, at the same time, feed rates ƒ Ident. No. 350–357: HA straight shank
and cutting depths can be increased.
Advantage:
Execution: ƒ optimum suitability for trochoidal milling
ƒ ultra-fine grain cemented carbide ƒ HPC geometry for maximum feed rates and running
ƒ with uneven helical (35/38°) smoothness
ƒ with reinforced core ƒ suitable for large cutting depths
ƒ with clearance
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16670340-347 140 130 70 60 70 60 70
16670350-357 140 130 70 60 70 60 70
Type VA VA
Surface ULTRA MS ULTRA MS
Tool holding device HB parallel HA parallel
shank shank
Z (PCS) fz in stainless 16670... 16670...
steel ˜ ID no. ID no.
(mm)
mm mm mm mm mm mm mm
4 12 20 57 3.7 6 0.1 5 0.02 340 O. R. 350 O. R.
5 13 20 57 4.6 6 0.1 5 0.025 341 O. R. 351 O. R.
6 13 20 57 5.5 6 0.1 5 0.03 342 O. R. 352 O. R.
8 20 30 64 7.4 8 0.2 5 0.036 343 O. R. 353 O. R.
10 22 32 72 9.2 10 0.2 5 0.044 344 O. R. 354 O. R.
12 26 37 83 11 12 0.2 5 0.052 345 O. R. 355 O. R.
16 32 46 92 15 16 0.3 5 0.065 346 O. R. 356 O. R.
20 38 58 104 19 20 0.4 5 0.08 347 O. R. 357 O. R.
Unit price, €
Prod. group 152
SC roughing cutter Milling cutter design standard Company
4 cutters, ULTRA MS-coated standard

ULTRA Typ Z HB
VHM
MS VA 4 45°
Application: ƒ Defined cutting edge rounding
Roughing cutter with unequal cutting pitch for ma- ƒ Centre cutting
chining stainless steels and titanium/Ni/Co alloys.
Advantage:
Execution: ƒ High-performance roughing
ƒ Ultra-fine grain cemented carbide ƒ Optimised, positive cutting geometry
ƒ HB straight shank ƒ Excellent chip removal and temperature resistance
ƒ With clearance ƒ Maximum service life thanks to ULTRA MS coating
ƒ ULTRA MS high-performance coating
ƒ With edge protection chamfer
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16670240-250 140 130 70 60 70 60 70
Type VA
Surface ULTRA MS
Tool holding device HB parallel
shank
Z (PCS) fz in stainless 16670...
steel ˜ (mm) ID no.
mm mm mm mm mm mm mm
6 16 20 57 5.5 6 0.1 4 0.023 240 O. R.
8 20 30 64 7.4 8 0.2 4 0.03 242 O. R.
10 22 32 72 9.2 10 0.2 4 0.035 244 O. R.
12 26 37 83 11 12 0.2 4 0.041 246 O. R.
16 32 46 92 15 16 0.3 4 0.052 248 O. R.
20 38 58 104 19 20 0.4 4 0.065 250 O. R.
Unit price, €
Prod. group 152
