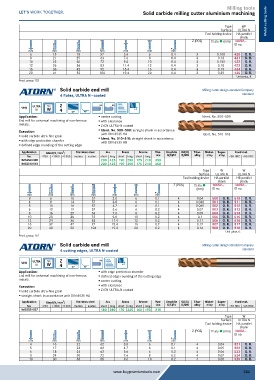

P. 244
Milling tools
Solid carbide milling cutter aluminium machining
Type WF Metal cutting tools
Surface ULTRA N
Tool holding device HA parallel
shank
Z (PCS) fz alu (mm) 16652...
ID no.
mm mm mm mm mm mm mm
6 13 18 57 5.6 6 0.4 3 0.108 420 O. R.
8 21 25 63 7.6 8 0.4 3 0.13 421 O. R.
10 22 30 72 9.6 10 0.4 3 0.155 422 O. R.
12 26 36 83 11.4 12 0.4 3 0.18 423 O. R.
16 36 42 92 15.4 16 0.4 3 0.19 424 O. R.
20 41 52 104 19.4 20 0.4 3 0.25 425 O. R.
Unit price, €
Prod. group 152
Solid carbide end mill Milling cutter design standard Company
4 flutes, ULTRA N - coated standard
VHM ULTRA Typ Z HA HB
N W 4 45°
Application: centre cutting Ident. No. 500–508
End mill for universal machining of non-ferrous with clearance
metals. ZrCN ULTRA-N coated
Execution: Ident. No. 500–508: straight shank in accordance
with DIN 6535 HA
solid carbide ultra-fine grain Ident. No. 510–518
with edge protection chamfer Ident. No. 510–518: straight shank in accordance
with DIN 6535 HB
defined edge rounding of the cutting edge
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16652500-508 200 425 190 250 175 210 350
16652510-518 200 425 190 250 175 210 350
Type W W
Surface ULTRA N ULTRA N
Tool holding device HA parallel HB parallel
shank shank
Z (PCS) fz alu 16652... 16652...
(mm) ID no. ID no.
mm mm mm mm mm mm mm
3 6 10 57 2.8 6 0.1 4 0.04 500 O. R. 510 O. R.
4 8 14 57 3.8 6 0.1 4 0.048 501 O. R. 511 O. R.
5 10 16 57 4.7 6 0.1 4 0.065 502 O. R. 512 O. R.
6 12 19 57 5.6 6 0.2 4 0.07 503 O. R. 513 O. R.
8 16 25 63 7.6 8 0.2 4 0.09 504 O. R. 514 O. R.
10 20 30 72 9.6 10 0.2 4 0.1 505 O. R. 515 O. R.
12 24 36 83 11.4 12 0.2 4 0.11 506 O. R. 516 O. R.
16 32 42 92 15.4 16 0.2 4 0.12 507 O. R. 517 O. R.
20 40 52 104 19.4 20 0.2 4 0.16 508 O. R. 518 O. R.
Unit price, €
Prod. group 152
Solid carbide end mill Milling cutter design standard Company
4 cutting edges, ULTRA N-coated standard
VHM ULTRA Typ Z HA
N W 4 45°
Application: with edge protection chamfer
End mill for universal machining of non-ferrous defined edge rounding of the cutting edge
metals. centre cutting
Execution: with clearance
solid carbide ultra-fine grain ZrCN ULTRA-N coated
straight shank in accordance with DIN 6535 HA
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16652521-527 180 380 170 225 160 190 315
Type W
Surface ULTRA N
Tool holding device HA parallel
shank
Z (PCS) fz alu (mm) 16652...
ID no.
mm mm mm mm mm mm mm
4 16 22 62 3.8 6 0.1 4 0.04 521 O. R.
5 17 24 62 4.7 6 0.1 4 0.05 522 O. R.
6 18 24 62 5.6 6 0.2 4 0.06 523 O. R.
8 24 30 72 7.6 8 0.2 4 0.07 524 O. R.
10 30 38 80 9.6 10 0.2 4 0.08 525 O. R.
