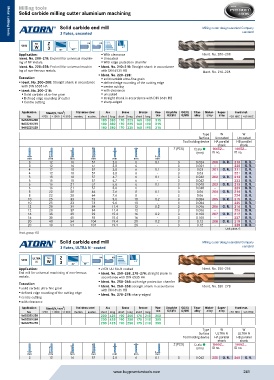

Page 241 - Buy Premium Tools ATORN Catalogue

Milling tools
Solid carbide milling cutter aluminium machining

Solid carbide end mill Milling cutter design standard Company
3 flutes, uncoated standard
Metal cutting tools
Metal cutting tools
Typ Z HA HB
VHM W 3 45°
Application: ƒ With clearance Ident. No. 200–208
Ident. No. 200–218: End mill for universal machin- ƒ Uncoated
ing of NF metals. ƒ With edge protection chamfer
Ident. No. 220–228: End mill for universal machin- ƒ Ident. No. 210–218: Straight shank in accordance
ing of non-ferrous metals. with DIN 6535 HB Ident. No. 210–228
ƒ Ident. No. 220–228:
Execution: ƒ solid carbide ultra-fine grain
ƒ Ident. No. 200–208: Straight shank in accordance ƒ defined edge rounding of the cutting edge
with DIN 6535 HA ƒ centre cutting
ƒ Ident. No. 200–218: ƒ with clearance
ƒ Solid carbide ultra-fine grain ƒ uncoated
ƒ Defined edge rounding of cutter ƒ straight shank in accordance with DIN 6535 HB
ƒ Centre cutting ƒ sharp-edged

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16652200-208 180 380 170 225 160 190 315
16652210-218 180 380 170 225 160 190 315
16652220-228 180 380 170 225 160 190 315
Type W W
Surface Uncoated Uncoated
Tool holding device HA parallel HB parallel
shank shank
Z (PCS) fz alu ˜ 16652... 16652...
(mm) ID no. ID no.
mm mm mm mm mm mm mm
3 12 16 57 2.8 6 0.1 3 0.024 200 O. R. 210 O. R.
3 12 16 57 2.8 6 - 3 0.024 - - 220 O. R.
4 12 18 57 3.8 6 0.1 3 0.03 201 O. R. 211 O. R.
4 12 18 57 3.8 6 - 3 0.03 - - 221 O. R.
5 15 18 57 4.7 6 0.1 3 0.042 202 O. R. 212 O. R.
5 15 18 57 4.7 6 - 3 0.042 - - 222 O. R.
6 16 21 57 5.6 6 0.1 3 0.048 203 O. R. 213 O. R.
6 16 21 57 5.6 6 - 3 0.048 - - 223 O. R.
8 22 28 64 7.6 8 0.1 3 0.06 204 O. R. 214 O. R.
8 22 28 64 7.6 8 - 3 0.06 - - 224 O. R.
10 25 33 73 9.6 10 0.2 3 0.084 205 O. R. 215 O. R.
10 25 33 73 9.6 10 - 3 0.084 - - 225 O. R.
12 28 39 84 11.4 12 0.2 3 0.096 206 O. R. 216 O. R.
12 28 39 84 11.4 12 - 3 0.096 - - 226 O. R.
16 35 45 93 15.4 16 0.2 3 0.108 207 O. R. 217 O. R.
16 35 45 93 15.4 16 - 3 0.108 - - 227 O. R.
20 40 54 104 19.4 20 0.2 3 0.12 208 O. R. 218 O. R.
20 40 54 104 19.4 20 - 3 0.12 - - 228 O. R.
Unit price, €
Prod. group 152
Solid carbide end mill Milling cutter design standard Company
3 flutes, ULTRA N - coated standard

VHM ULTRA Typ Z HA HB
N W 3 45°
Application: ƒ ZrCN ULTRA-N coated Ident. No. 250–258
End mill for universal machining of non-ferrous ƒ Ident. No. 250–258, 270–278: straight shank in
metals. accordance with DIN 6535 HA
Execution: ƒ Ident. No. 250–268: with edge protection chamfer Ident. No. 260–278
ƒ Ident. No. 260–268: straight shank in accordance
ƒ solid carbide ultra-fine grain with DIN 6535 HB
ƒ defined edge rounding of the cutting edge ƒ Ident. No. 270–278: sharp-edged
ƒ centre cutting
ƒ with clearance
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16652250-258 200 425 190 250 175 210 350
16652260-268 200 425 190 250 175 210 350
16652270-278 200 425 190 250 175 210 350
Type W W
Surface ULTRA N ULTRA N
Tool holding device HA parallel HB parallel
shank shank
Z (PCS) fz alu ˜ 16652... 16652...
(mm) ID no. ID no.
mm mm mm mm mm mm mm
3 12 16 57 2.8 6 0.1 3 0.042 250 O. R. 260 O. R.
