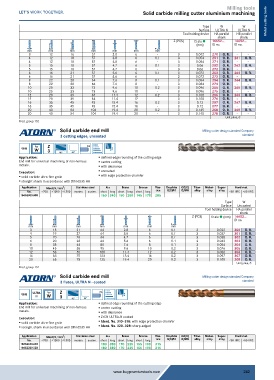

Page 242 - Buy Premium Tools ATORN Catalogue

Milling tools
Solid carbide milling cutter aluminium machining

Type W W Metal cutting tools
Surface ULTRA N ULTRA N
Tool holding device HA parallel HB parallel
shank shank
Z (PCS) fz alu ˜ 16652... 16652...
(mm) ID no. ID no.
mm mm mm mm mm mm mm
3 12 16 57 2.8 6 - 3 0.042 270 O. R. - -
4 12 18 57 3.8 6 0.1 3 0.054 251 O. R. 261 O. R.
4 12 18 57 3.8 6 - 3 0.054 271 O. R. - -
5 15 18 57 4.7 6 0.1 3 0.06 252 O. R. 262 O. R.
5 15 18 57 4.7 6 - 3 0.06 272 O. R. - -
6 16 21 57 5.6 6 0.1 3 0.072 253 O. R. 263 O. R.
6 16 21 57 5.6 6 - 3 0.072 273 O. R. - -
8 22 28 64 7.6 8 0.1 3 0.084 254 O. R. 264 O. R.
8 22 28 64 7.6 8 - 3 0.084 274 O. R. - -
10 25 33 73 9.6 10 0.2 3 0.096 255 O. R. 265 O. R.
10 25 33 73 9.6 10 - 3 0.096 275 O. R. - -
12 28 39 84 11.4 12 0.2 3 0.108 256 O. R. 266 O. R.
12 28 39 84 11.4 12 - 3 0.108 276 O. R. - -
16 35 45 93 15.4 16 0.2 3 0.12 257 O. R. 267 O. R.
16 35 45 93 15.4 16 - 3 0.12 277 O. R. - -
20 40 54 104 19.4 20 0.2 3 0.145 258 O. R. 268 O. R.
20 40 54 104 19.4 20 - 3 0.145 278 O. R. - -
Unit price, €
Prod. group 152
Solid carbide end mill Milling cutter design standard Company
3 cutting edges, uncoated standard

Typ Z HA
VHM
W 3 45°
Application: ƒ defined edge rounding of the cutting edge
End mill for universal machining of non-ferrous ƒ centre cutting
metals. ƒ with clearance
Execution: ƒ uncoated
ƒ solid carbide ultra-fine grain ƒ with edge protection chamfer
ƒ straight shank in accordance with DIN 6535 HA
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16652300-308 160 340 150 200 145 170 285
Type W
Surface Uncoated
Tool holding device HA parallel
shank
Z (PCS) fz alu ˜ (mm) 16652...
ID no.
mm mm mm mm mm mm mm
3 15 21 64 2.8 6 0.1 3 0.022 300 O. R.
4 19 27 64 3.8 6 0.1 3 0.027 301 O. R.
5 20 28 64 4.7 6 0.1 3 0.038 302 O. R.
6 20 28 64 5.6 6 0.1 3 0.043 303 O. R.
8 38 44 80 7.6 8 0.1 3 0.054 304 O. R.
10 45 55 95 9.6 10 0.2 3 0.076 305 O. R.
12 53 55 100 11.4 12 0.2 3 0.086 306 O. R.
16 63 75 123 15.4 16 0.2 3 0.097 307 O. R.
20 65 75 125 19.4 20 0.2 3 0.108 308 O. R.
Unit price, €
Prod. group 152
Solid carbide end mill Milling cutter design standard Company
3 flutes, ULTRA N - coated standard

Typ
VHM ULTRA W Z HA
N 3 45°
Application: ƒ defined edge rounding of the cutting edge
End mill for universal machining of non-ferrous ƒ centre cutting
metals. ƒ with clearance
Execution: ƒ ZrCN ULTRA-N coated
ƒ solid carbide ultra-fine grain ƒ Ident. No. 310–318: with edge protection chamfer
ƒ straight shank in accordance with DIN 6535 HA ƒ Ident. No. 320–328: sharp-edged
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16652310-318 180 380 170 225 155 190 315
16652320-328 180 380 170 225 155 190 315
