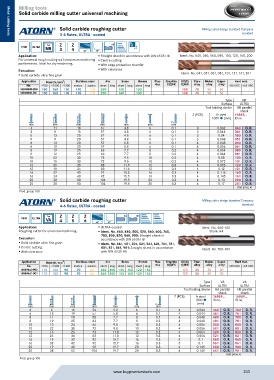

P. 233
Milling tools
Solid carbide milling cutter universal machining
Solid carbide roughing cutter Milling cutter design standard Company
3-4 flutes, ULTRA - coated standard
Metal cutting tools
Metal cutting tools
Typ Z Z HB
VHM ULTRA
NR 3 4 45°
Application: Straight shank in accordance with DIN 6535 HB Ident. No. 040, 050, 060, 080, 100, 120, 160, 200
For universal rough cutting with maximum machining Centre cutting
performance. Ideal for dry machining. With edge protection chamfer
Execution: With clearance Ident. No. 041, 051, 061, 081, 101, 121, 161, 201
Solid carbide ultra-fine grain
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16848040-200 150 150 110 110 110 350 140 130 150 70 50 50
16848041-201 150 150 110 110 110 350 140 130 150 70 50 50
Type NR
Surface ULTRA
Tool holding device HB parallel
shank
Z (PCS) fz steel 16848...
1000 (mm) ID no.
mm mm mm mm mm mm mm
4 11 18 57 3.8 6 0.1 3 0.032 040 O. R.
4 8 18 57 3.8 6 0.1 3 0.044 041 O. R.
5 13 20 57 4.8 6 0.1 3 0.04 050 O. R.
5 9 20 57 4.8 6 0.1 3 0.048 051 O. R.
6 13 20 57 5.8 6 0.1 4 0.048 060 O. R.
6 10 20 57 5.8 6 0.1 4 0.056 061 O. R.
8 19 25 63 7.7 8 0.2 4 0.064 080 O. R.
8 12 25 63 7.7 8 0.2 4 0.064 081 O. R.
10 22 30 72 9.5 10 0.2 4 0.08 100 O. R.
10 15 30 72 9.5 10 0.2 4 0.072 101 O. R.
12 26 35 83 11.5 12 0.3 4 0.096 120 O. R.
12 18 35 83 11.5 12 0.3 4 0.12 121 O. R.
16 32 40 92 15.5 16 0.3 4 0.115 160 O. R.
16 24 40 92 15.5 16 0.3 4 0.145 161 O. R.
20 38 50 104 19.5 20 0.3 4 0.13 200 O. R.
20 30 50 104 19.5 20 0.3 4 0.17 201 O. R.
Unit price, €
Prod. group 108
Solid carbide roughing cutter Milling cutter design standard Company
4-6 flutes, ULTRA - coated standard
Typ Z Z Z HA HB
VHM ULTRA
VA 4 5 6 45°
Application: ULTRA-coated Ident. No. 460–601
Roughing cutter for universal machining. Ident. No. 460, 480, 500, 520, 560, 600, 760, Shank HA
780, 800, 820, 860, 900: Straight shank in
Execution: accordance with DIN 6535 HB
Solid carbide ultra-fine grain Ident. No. 461, 481, 501, 521, 561, 601, 761, 781,
Centre cutting 801, 821, 861, 901: Straight shank in accordance Ident. No. 760–901
With clearance with DIN 6535 HA
Application Steel (N/mm ) Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
2
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16849460-900 110 100 90 70 65 350 300 135 150 120 135 120 35 30 30
16849461-901 110 100 90 70 65 350 300 135 150 120 135 120 35 30 30
Type VA VA
Surface ULTRA ULTRA
Tool holding device HA parallel HB parallel
shank shank
Z (PCS) fz steel 16849... 16849...
1000 ID no. ID no.
(mm)
mm mm mm mm mm mm mm
6 8 16 54 5.8 6 0.1 4 0.044 460 O. R. 760 O. R.
6 13 19 57 5.8 6 0.1 4 0.044 461 O. R. 761 O. R.
8 11 20 58 7.7 8 0.2 4 0.048 480 O. R. 780 O. R.
8 19 25 63 7.7 8 0.2 4 0.048 481 O. R. 781 O. R.
10 13 24 66 9.8 10 0.2 4 0.056 500 O. R. 800 O. R.
10 22 30 72 9.8 10 0.2 4 0.056 501 O. R. 801 O. R.
12 16 26 73 11.8 12 0.2 4 0.064 520 O. R. 820 O. R.
12 26 36 83 11.8 12 0.2 4 0.064 521 O. R. 821 O. R.
16 19 32 82 15.7 16 0.3 5 0.1 560 O. R. 860 O. R.
16 32 42 92 15.7 16 0.3 5 0.1 561 O. R. 861 O. R.
20 19 40 92 19.7 20 0.3 6 0.145 600 O. R. 900 O. R.
20 38 52 104 19.7 20 0.3 6 0.145 601 O. R. 901 O. R.
Unit price, €
Prod. group 108
