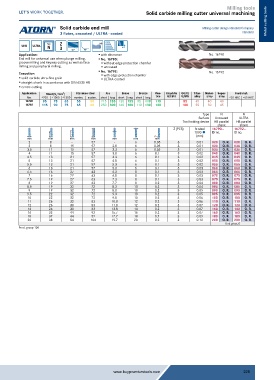

P. 228
Milling tools
Solid carbide milling cutter universal machining
Solid carbide end mill Milling cutter design standard Company Metal cutting tools
3 flutes, uncoated / ULTRA - coated standard
Typ Z HB
VHM ULTRA N 3 45°
Application: with clearance No. 16790
End mill for universal use when plunge milling, No. 16790:
groove milling and keyway cutting as well as face without edge protection chamfer
milling and peripheral milling. uncoated
No. 16792: No. 16792
Execution: with edge protection chamfer
solid carbide ultra-fine grain ULTRA-coated
straight shank in accordance with DIN 6535 HB
centre cutting
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16790 95 75 65 55 50 215 255 135 155 95 110 110 85 45 40 40
16792 115 90 75 65 60 250 300 160 180 110 130 130 100 55 50 45
Type N N
Surface Uncoated ULTRA
Tool holding device HB parallel HB parallel
shank shank
Z (PCS) fz steel 16790... 16792...
1000 ID no. ID no.
(mm)
mm mm mm mm mm mm mm
2 8 - 57 - 6 0.05 3 0.01 020 O. R. 020 O. R.
3 8 15 57 2.8 6 0.05 3 0.01 030 O. R. 030 O. R.
3.5 11 15 57 3.3 6 0.05 3 0.01 035 O. R. 035 O. R.
4 11 15 57 3.8 6 0.1 3 0.02 040 O. R. 040 O. R.
4.5 13 21 57 4.3 6 0.1 3 0.02 045 O. R. 045 O. R.
5 13 21 57 4.8 6 0.1 3 0.02 050 O. R. 050 O. R.
5.5 13 21 57 5.3 6 0.1 3 0.02 055 O. R. 055 O. R.
6 13 21 57 5.8 6 0.1 3 0.03 060 O. R. 060 O. R.
6.5 16 27 63 6.3 8 0.1 3 0.03 065 O. R. 065 O. R.
7 16 27 63 6.8 8 0.1 3 0.03 070 O. R. 070 O. R.
7.5 19 27 63 7.3 8 0.1 3 0.03 075 O. R. 075 O. R.
8 19 27 63 7.7 8 0.2 3 0.04 080 O. R. 080 O. R.
8.5 19 32 72 8.3 10 0.2 3 0.04 085 O. R. 085 O. R.
9 19 32 72 8.8 10 0.2 3 0.05 090 O. R. 090 O. R.
9.5 22 32 72 9.3 10 0.2 3 0.05 095 O. R. 095 O. R.
10 22 32 72 9.8 10 0.2 3 0.06 100 O. R. 100 O. R.
11 26 32 83 10.8 12 0.2 3 0.06 110 O. R. 110 O. R.
12 26 38 83 11.8 12 0.2 3 0.07 120 O. R. 120 O. R.
14 26 38 83 13.8 14 0.2 3 0.07 140 O. R. 140 O. R.
16 32 44 92 15.7 16 0.2 3 0.07 160 O. R. 160 O. R.
18 32 44 92 17.7 18 0.2 3 0.09 180 O. R. 180 O. R.
20 38 54 104 19.7 20 0.2 3 0.12 200 O. R. 200 O. R.
Unit price, €
Prod. group 108
