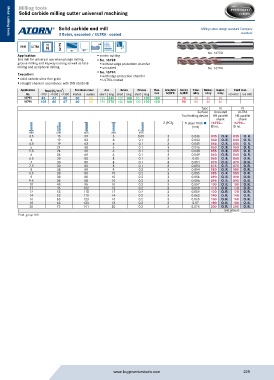

Page 229 - Buy Premium Tools ATORN Catalogue
P. 229
Milling tools
Solid carbide milling cutter universal machining
Solid carbide end mill Milling cutter design standard Company
3 flutes, uncoated / ULTRA - coated standard
Metal cutting tools
Metal cutting tools
Typ Z HB
VHM ULTRA N 3 45°
Application: centre cutting No. 16793
End mill for universal use when plunge milling, No. 16793:
groove milling and keyway cutting as well as face without edge protection chamfer
milling and peripheral milling. uncoated No. 16794
Execution: No. 16794:
with edge protection chamfer
solid carbide ultra-fine grain ULTRA-coated
straight shank in accordance with DIN 6535 HB
Application Steel (N/mm ) Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
2
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16793 85 67 60 50 45 195 230 120 140 85 100 100 75 40 35 35
16794 105 80 67 60 55 225 270 145 160 100 120 120 90 50 45 40
Type N N
Surface Uncoated ULTRA
Tool holding device HB parallel HB parallel
shank shank
Z (PCS) fz steel 1000 16793... 16794...
(mm) ID no. ID no.
mm mm mm mm mm
3.5 15 59 6 0.05 3 0.036 035 O. R. 035 O. R.
4 19 63 6 0.1 3 0.043 040 O. R. 040 O. R.
4.5 19 63 6 0.1 3 0.045 045 O. R. 045 O. R.
5 24 68 6 0.1 3 0.046 050 O. R. 050 O. R.
5.5 24 68 6 0.1 3 0.048 055 O. R. 055 O. R.
6 24 68 6 0.1 3 0.049 060 O. R. 060 O. R.
6.5 30 80 8 0.1 3 0.05 065 O. R. 065 O. R.
7 30 80 8 0.1 3 0.051 070 O. R. 070 O. R.
7.5 30 80 8 0.1 3 0.053 075 O. R. 075 O. R.
8 38 88 8 0.2 3 0.054 080 O. R. 080 O. R.
8.5 38 88 10 0.2 3 0.055 085 O. R. 085 O. R.
9 38 88 10 0.2 3 0.056 090 O. R. 090 O. R.
9.5 38 88 10 0.2 3 0.056 095 O. R. 095 O. R.
10 45 95 10 0.2 3 0.057 100 O. R. 100 O. R.
11 45 102 12 0.2 3 0.058 110 O. R. 110 O. R.
12 53 110 12 0.2 3 0.059 120 O. R. 120 O. R.
14 53 110 14 0.2 3 0.062 140 O. R. 140 O. R.
16 63 123 16 0.2 3 0.065 160 O. R. 160 O. R.
18 63 123 18 0.2 3 0.07 180 O. R. 180 O. R.
20 75 141 20 0.2 3 0.076 200 O. R. 200 O. R.
Unit price, €
Prod. group 108
