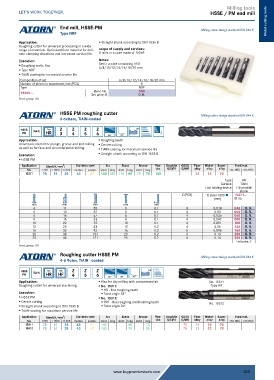

Milling tools
HSSE / PM end mill

End mill, HSSE-PM Milling cutter design standard DIN 844 K Metal cutting tools
Type NRF
Application: ƒ Straight shank according to DIN 1835 B
Roughing cutter for universal processing in a wide
range of materials. Optimised flute material for deli- scope of supply and services:
cate clamping situations and increased service life. 8 mills in a case made of 15269
Execution: Notes:
ƒ Roughing teeth, fine Set in a case consisting of Ø
6/8/10/12/14/16/18/20 mm
ƒ Type NRF
ƒ TiAlN coating for increased service life
Composition of set 6/8/10/12/14/16/18/20 mm
Number of pieces in assortment/set (PCS) 8
Type NRF
500
Ident. No.
15269... Set price, € O. R.
Prod. group 118
HSSE PM roughing cutter Milling cutter design standard DIN 844 K
6 cutters, TiAlN-coated

HSSE- TiAlN Typ Z Z Z Z HB
PM HR 3 4 5 6 45°
Application: ƒ Roughing teeth
Universal end mill for plunge, groove and slot milling ƒ Centre cutting
as well as for face and circumferential milling. ƒ TiAIN-coating for maximum service life
Execution: ƒ Straight shank according to DIN 1835 B
ƒ HSSE PM
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
15271 78 51 35 43 37 130 325 110 85 70 70 140 23 23 20
Type HR
Surface TiAlN
Tool holding device HB parallel
shank
Z (PCS) fz steel 1300 ˜ 15271...
(mm) ID no.
mm mm mm mm mm
4 11 55 6 0.1 3 0.018 040 O. R.
5 13 57 6 0.1 4 0.03 050 O. R.
6 16 57 6 0.1 4 0.035 060 O. R.
8 16 63 8 0.1 4 0.042 080 O. R.
10 22 72 10 0.1 4 0.051 100 O. R.
12 25 83 12 0.2 4 0.06 120 O. R.
16 32 92 16 0.2 5 0.095 160 O. R.
20 38 104 20 0.2 6 0.13 200 O. R.
25 45 121 25 0.2 6 0.14 250 O. R.
Unit price, €
Prod. group 118
Roughing cutter HSSE PM Milling cutter design standard DIN 844 K
4-6 flutes, TiAlN - coated

HSSE- TiAlN Typ Typ Z Z Z HB
PM HR HF 4 5 6 45°
Application: ƒ Also for dry milling with compressed air No. 15311
Roughing cutter for universal machining. ƒ No. 15311: Type HR
Execution: ƒ HR - fine roughing teeth
ƒ Twist angle 35°
ƒ HSSE PM ƒ No. 15312:
ƒ Centre cutting ƒ HRF - fine roughing and finishing teeth No. 15312
ƒ Straight shank according to DIN 1835 B ƒ Twist angle 30°
ƒ TiAIN-coating for maximum service life
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
15311 78 51 35 43 37 130 80 70 75 23 23 20
15312 78 51 35 43 43 130 70 85 75 23 23 20
