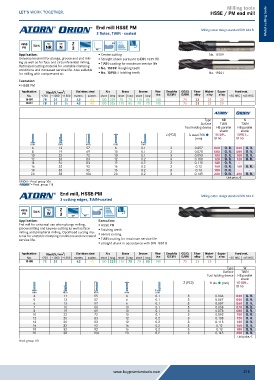

Page 216 - Buy Premium Tools ATORN Catalogue

Milling tools
HSSE / PM end mill

End mill HSSE PM Milling cutter design standard DIN 844 B Metal cutting tools
3 flutes, TiAlN - coated

HSSE- TiAlN Typ Typ Z HB
PM NR N 3 45°
Application: ƒ Centre cutting No. 15159
Universal end mill for plunge, groove and slot mill- ƒ Straight shank pursuant to DIN 1835 HB
ing as well as for face and circumferential milling. ƒ TiAIN-coating for maximum service life
Optimized cutting material for unstable clamping ƒ No. 15159: Roughing teeth
conditions and increased service life. Also suitable
for milling with compressed air. ƒ No. 15901: Finishing teeth No. 15901
Execution:
ƒ HSSE PM
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
15159 78 51 35 43 43 130 325 70 70 110 85 140 75 23 23 20
15901 78 51 35 43 40 130 325 110 85 70 70 140 75 23 23 20

Type NR N
Surface TiAlN TiAlN
Tool holding device HB parallel HB parallel
shank shank
Z (PCS) fz steel 700 ˜ 15159... 15901...
(mm) ID no. ID no.
mm mm mm mm mm
6 13 57 6 0.1 3 0.057 060 O. R. 060 O. R.
8 19 69 10 0.1 3 0.078 080 O. R. 080 O. R.
10 22 72 10 0.1 3 0.093 100 O. R. 100 O. R.
12 26 83 12 0.2 3 0.108 120 O. R. 120 O. R.
14 26 83 12 0.2 3 0.115 140 O. R. - -
16 32 92 16 0.2 3 0.12 160 O. R. 160 O. R.
18 32 92 16 0.2 3 0.13 180 O. R. - -
20 38 104 20 0.2 3 0.145 200 O. R. 200 O. R.
Unit price, €
ORION = Prod. group 106
a = Prod. group 118
End mill, HSSE-PM Milling cutter design standard DIN 844 K
3 cutting edges, TiAlN-coated

HSSE- Typ Z HB
PM TiAlN W 3 45°
Application: Execution:
End mill for universal use when plunge milling, ƒ HSSE PM
groove milling and keyway cutting as well as face ƒ finishing teeth
milling and peripheral milling. Optimised cutting ma- ƒ centre cutting
terial for unstable clamping conditions and increased
service life. ƒ TiAIN coating for maximum service life
ƒ straight shank in accordance with DIN 1835 B

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
15158 78 51 43 43 130 325 110 70 70 85 140 75 23 23
Type W
Surface TiAlN
Tool holding device HB parallel
shank
Z (PCS) fz alu ˜ (mm) 15158...
ID no.
mm mm mm mm mm
4 11 55 6 0.1 3 0.036 040 O. R.
5 13 57 6 0.1 3 0.047 050 O. R.
6 13 57 6 0.1 3 0.057 060 O. R.
7 16 66 10 0.1 3 0.068 070 O. R.
8 19 69 10 0.1 3 0.078 080 O. R.
10 22 72 10 0.1 3 0.093 100 O. R.
12 26 83 12 0.2 3 0.108 120 O. R.
14 26 83 12 0.2 3 0.115 140 O. R.
16 32 92 16 0.2 3 0.12 160 O. R.
18 32 92 16 0.2 3 0.13 180 O. R.
20 38 104 20 0.2 3 0.145 200 O. R.
Unit price, €
Prod. group 118
