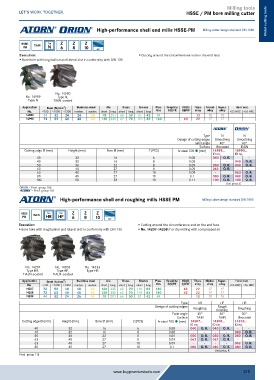

Milling tools
HSSE / PM bore milling cutter

High-performance shell end mills HSSE-PM Milling cutter design standard DIN 1880 Metal cutting tools

HSSE- TiAlN Typ Z Z Z
PM N 6 8 10
Execution: ƒ Cutting around the circumference and on the end face
ƒ Bore hole with longitudinal and lateral slot in conformity with DIN 138

No. 14990
No. 14989 Type N,
Type N TiAlN-coated
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
14989 44 32 24 26 24 78 201 66 50 37 42 84 13 10 10
14990 73 53 40 40 43 130 335 62 70 110 83 140 63 22 17 17

Type N N
Design of cutting edges Smoothing Smoothing
Twist angle 40° 40°
Surface Uncoated TiAlN
Cutting edge Ø (mm) Height (mm) Bore Ø (mm) Z (PCS) fz steel 700 ˜ (mm) 14989... 14990...
ID no. ID no.
40 32 16 6 0.08 040 O. R. - -
40 32 16 8 0.08 - - 040 O. R.
50 36 22 8 0.09 050 O. R. 050 O. R.
63 40 27 8 0.09 063 O. R. - -
63 40 27 10 0.09 - - 063 O. R.
80 45 27 10 0.1 080 O. R. 080 O. R.
100 50 32 10 0.11 100 O. R. 100 O. R.
Unit price, €
ORION = Prod. group 106
a = Prod. group 118
High-performance shell end roughing mills HSSE PM Milling cutter design standard DIN 1880

HSSE- TiAlN Typ Typ Z Z Z
PM HR HF 6 8 10
Execution: ƒ Cutting around the circumference and on the end face
ƒ Bore hole with longitudinal and lateral slot in conformity with DIN 138 ƒ No. 14207–14208: For dry milling with compressed air

No. 14207 No. 14208 No. 14233
Type HR, Type HF, Type HR
TiALN-coated TiALN-coated
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
14207 73 53 40 40 43 130 335 62 70 110 83 140 63 22 17 17
14208 73 53 40 40 43 130 335 62 70 110 83 140 63 22 17 17
14233 44 32 24 26 24 78 201 66 50 37 42 84 13 10 10
Type HR HF HR
Design of cutting edges Roughing finishing Roughing
Rough
Twist angle 30° 30° 30°
Surface TiAlN TiAlN Uncoated
Cutting edge Ø (mm) Height (mm) Bore Ø (mm) Z (PCS) fz steel 700 ˜ (mm) 14207... 14208... 14233...
ID no. ID no. ID no.
40 32 16 6 0.08 040 O. R. 040 O. R. - -
40 32 16 8 0.08 - - - - 040 O. R.
50 36 22 8 0.09 050 O. R. 050 O. R. 050 O. R.
63 40 27 8 0.09 063 O. R. 063 O. R. - -
63 40 27 10 0.09 - - - - 063 O. R.
80 45 27 10 0.1 080 O. R. 080 O. R. 080 O. R.
Unit price, €
Prod. group 118

www.buypremiumtools.com 215
