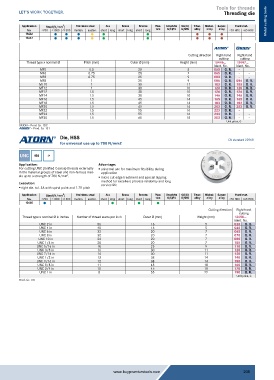

Page 208 - Buy Premium Tools ATORN Catalogue

Tools for threads
Threading die

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat. Metal cutting tools
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13446 ˜ ˜ ˜ ˜ ˜ ˜ ˜ ˜ ˜
13447 ˜ ˜ ˜ ˜ ˜ ˜ ˜ ˜ ˜

Cutting direction Right-hand Right-hand
cutting cutting
Thread type x nominal Ø Pitch (mm) Outer Ø (mm) Height (mm) 13446... 13447...
Ident. No. Ident. No.
MF5 0.5 20 5 050 O. R. - -
MF6 0.75 20 7 065 O. R. - -
MF8 0.75 25 9 083 O. R. - -
MF8 1 25 9 086 O. R. 086 O. R.
MF10 1 30 11 103 O. R. 103 O. R.
MF12 1 38 10 120 O. R. 120 O. R.
MF12 1.5 38 10 126 O. R. 126 O. R.
MF14 1.5 38 10 146 O. R. 146 O. R.
MF16 1.5 45 14 165 O. R. 165 O. R.
MF18 1.5 45 14 183 O. R. 183 O. R.
MF20 1.5 45 14 203 O. R. 203 O. R.
MF22 1.5 55 16 223 O. R. - -
MF24 1.5 55 16 243 O. R. - -
MF30 1.5 65 18 303 O. R. - -
Unit price, €
ORION = Prod. Gr. 1DC
a = Prod. Gr. 131
Die, HSS EN standard 22568
for universal use up to 700 N/mm2

UNC HSS 2A
Application: Advantage:
For cutting UNC (Unified Coarse) threads externally ƒ universal use for maximum flexibility during
in the material groups of steel and non-ferrous met- application
als up to a strength of 700 N/mm . 2 ƒ micro cut edge treatment and special lapping
Execution: method for excellent process reliability and long
service life
ƒ right die. tol. 2A with spiral point and 1.75 pitch
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13450 ˜ ˜ ˜ ˜
Cutting direction Right-hand
cutting
Thread type x nominal Ø in inches Number of thread starts per inch Outer Ø (mm) Height (mm) 13450...
Ident. No.
UNC 2 in 56 16 5 020 O. R.
UNC 4 in 40 16 5 040 O. R.
UNC 6 in 32 20 7 060 O. R.
UNC 8 in 32 20 7 070 O. R.
UNC 10 in 24 20 7 080 O. R.
UNC 1/4 in 20 20 7 100 O. R.
UNC 5/16 in 18 25 9 110 O. R.
UNC 3/8 in 16 30 11 120 O. R.
UNC 7/16 in 14 30 11 130 O. R.
UNC 1/2 in 13 38 14 140 O. R.
UNC 9/16 in 12 38 14 150 O. R.
UNC 5/8 in 11 45 18 160 O. R.
UNC 3/4 in 10 45 18 170 O. R.
UNC 1 in 8 55 22 190 O. R.
Unit price, €
Prod. Gr. 131
