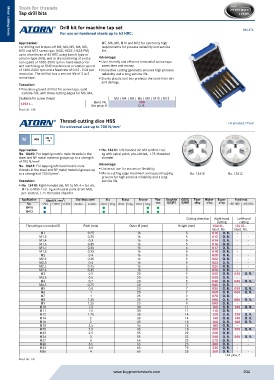

Tools for threads
Tap drill bits

Drill bit for machine tap set DIN 374
For use on hardened steels up to 63 HRC.
Metal cutting tools
Metal cutting tools
Application: M5, M6, M8, M10 and M12 for extremely high
For drilling out broken-off M3, M4, M5, M6, M8, requirements for process reliability and service
M10 and M12 screw taps (HSS, HSSE, HSSE PM) life.
up to a hardness of 65 HRC using bench-type or
column-type drills, wet or dry machining at a rota- Advantage:
tion speed of 1000-2000 rpm in hand-feed or for ƒ User-friendly and efficient removal of screw taps
wet machining on CNC machines at a rotation speed saves time and money.
of 1400-2400 rpm and a feed rate of 0.03 - 0.06 per ƒ Innovative cutting geometry ensures high process
revolution. The drill bit has a service life of 3 to 5 reliability and a long service life.
screw taps. ƒ Sturdy plastic tool box protects the tools from dirt
Execution: and damage.
ƒ Precision-ground drill bit for screw taps, solid
carbide-TiN, with three cutting edges for M3, M4,
Suitable for screw thread M3 | M4 | M5 | M6 | M8 | M10 | M12
300
Ident. No.
13521... Set price, € O. R.
Prod. Gr. 139
Thread-cutting dies HSS EN standard 22568
for universal use up to 700 N/mm 2

M HSS DIN 13
6g
Application: ƒ No. 13412: Left-handed die M3 to M24 = tol.
No. 13410: For tapping metric male threads in the 6g with spiral point, pre-slotted, 1.75-threaded
steel and NF metal material groups up to a strength chamfer
of 700 N/mm . 2
No. 13412: For tapping left-hand metric male Advantage:
threads in the steel and NF metal material groups up ƒ Universal use for maximum flexibility
to a strength of 700 N/mm . 2 ƒ Micro-cutting edge treatment and special lapping No. 13410 No. 13412
process for high process reliability and a long
Execution: service life
ƒ No. 13410: Right-handed die, M1 to M1.4 = tol. 6h,
M1.6 to M36 = tol. 6g with spiral point (from M3),
pre-slotted, 1.75-threaded chamfer
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13410 ˜ ˜ ˜ ˜
13412 ˜ ˜ ˜ ˜
Cutting direction Right-hand Left-hand
cutting cutting
Thread type x nominal Ø Pitch (mm) Outer Ø (mm) Height (mm) 13410... 13412...
Ident. No. Ident. No.
M1 0.25 16 5 010 O. R. - -
M1.2 0.25 16 5 012 O. R. - -
M1.4 0.3 16 5 014 O. R. - -
M1.6 0.35 16 5 016 O. R. - -
M1.7 0.35 16 5 017 O. R. - -
M1.8 0.35 16 5 018 O. R. - -
M2 0.4 16 5 020 O. R. - -
M2.2 0.45 16 5 022 O. R. - -
M2.3 0.4 16 5 023 O. R. - -
M2.5 0.45 16 5 025 O. R. - -
M2.6 0.45 16 5 026 O. R. - -
M3 0.5 20 5 030 O. R. 030 O. R.
M3.5 0.6 20 5 035 O. R. - -
M4 0.7 20 5 040 O. R. 040 O. R.
M4.5 0.75 20 7 045 O. R. - -
M5 0.8 20 7 050 O. R. 050 O. R.
M6 1 20 7 060 O. R. 060 O. R.
M7 1 25 9 070 O. R. - -
M8 1.25 25 9 080 O. R. 080 O. R.
M9 1.25 25 9 090 O. R. - -
M10 1.5 30 11 100 O. R. 100 O. R.
M11 1.5 30 11 110 O. R. - -
M12 1.75 38 14 120 O. R. 120 O. R.
M14 2 38 14 140 O. R. 140 O. R.
M16 2 45 18 160 O. R. 160 O. R.
M18 2.5 45 18 180 O. R. - -
M20 2.5 45 18 200 O. R. 200 O. R.
M22 2.5 55 22 220 O. R. - -
M24 3 55 22 240 O. R. 240 O. R.
M27 3 65 25 270 O. R. - -
M30 3.5 65 25 300 O. R. - -
M33 3.5 65 25 330 O. R. - -
M36 4 65 25 360 O. R. - -
Unit price, €
Prod. Gr. 131
