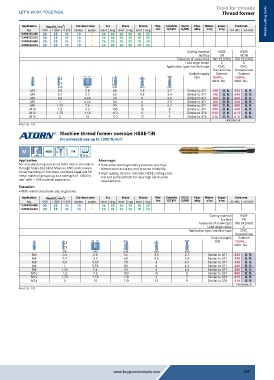

Page 187 - Buy Premium Tools ATORN Catalogue

Tools for threads
Thread former

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat. Metal cutting tools
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13394130-200 30 25 10 10 7 26 38 20 30 18 25
13394212-216 30 25 10 10 7 26 38 20 30 18 25
13394530-600 30 25 10 10 7 26 38 20 30 18 25
13394612-616 30 25 10 10 7 26 38 20 30 18 25
Cutting material HSSE HSSE
Surface TiN AlCrN
Tolerance of screw taps ISO 2X (6HX) ISO 2X (6HX)
Lead angle shape C C
Application type/machine type CNC, CNC,
Conventional Conventional
Coolant supply External External
DIN 13394... 13394...
Ident. No. Ident. No.
mm mm mm mm mm
M3 0.5 2.8 56 3.5 2.7 Similar to 371 130 O. R. 530 O. R.
M4 0.7 3.7 63 4.5 3.4 Similar to 371 140 O. R. 540 O. R.
M5 0.8 4.65 70 6 4.9 Similar to 371 150 O. R. 550 O. R.
M6 1 5.55 80 6 4.9 Similar to 371 160 O. R. 560 O. R.
M8 1.25 7.4 90 8 6.2 Similar to 371 180 O. R. 580 O. R.
M10 1.5 9.3 100 10 8 Similar to 371 200 O. R. 600 O. R.
M12 1.75 11.2 110 9 7 Similar to 376 212 O. R. 612 O. R.
M16 2 15 110 12 9 Similar to 376 216 O. R. 616 O. R.
Unit price, €
Prod. Gr. 131
Machine thread former oversize HSSE-TiN
for universal use up to 1300 N/mm 2
CNC/conv.
M HSSE TiN
3xd C (2-3)
Application: Advantage:
For manufacturing oversized ISO3 metric threads in ƒ Innovative mould geometry ensures very high
through holes and blind holes on CNC and conven- dimensional accuracy and process reliability.
tional machines in the steel, stainless steel and NF ƒ High-quality, torsion-resistant HSSE cutting mate-
metal material groups up to a strength of 1300 N/ rial and surface finish for very high service life
mm with > 10% material expansion. requirements.
2
Execution:
ƒ With reinforced shank and oil grooves.
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13394330-400 30 25 10 10 7 26 38 20 30 18 25
13394412-416 30 25 10 10 7 26 38 20 30 18 25
Cutting material HSSE
Surface TiN
Tolerance of screw taps ISO 3X (6GX)
Lead angle shape C
Application type/machine type CNC,
Conventional
Coolant supply External
DIN 13394...
Ident. No.
mm mm mm mm mm
M3 0.5 2.8 56 3.5 2.7 Similar to 371 330 O. R.
M4 0.7 3.7 63 4.5 3.4 Similar to 371 340 O. R.
M5 0.8 4.65 70 6 4.9 Similar to 371 350 O. R.
M6 1 5.55 80 6 4.9 Similar to 371 360 O. R.
M8 1.25 7.4 90 8 6.2 Similar to 371 380 O. R.
M10 1.5 9.3 100 10 8 Similar to 371 400 O. R.
M12 1.75 11.2 110 9 7 Similar to 376 412 O. R.
M16 2 15 110 12 9 Similar to 376 416 O. R.
Unit price, €
Prod. Gr. 131
