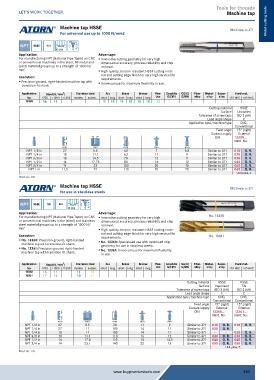

Page 183 - Buy Premium Tools ATORN Catalogue

Tools for threads
Machine tap

Machine tap HSSE DIN Similar to 371 Metal cutting tools
For universal use up to 1000 N/mm2

CNC/conv.
NPT HSSE
C (2-3)
Application: Advantage:
For manufacturing NPT (National Pipe Taper) on CNC ƒ Innovative cutting geometry for very high
or conventional machines in the steel, NF metal and dimensional accuracy, process reliability and chip
(cast) material groups up to a strength of 1000 N/ removal.
mm . 2 ƒ High-quality, torsion-resistant HSSE cutting mate-
Execution: rial and cutting edge finish for very high service life
requirements.
ƒ Precision-ground, right-handed machine tap with ƒ Universal use for maximum flexibility in use.
transition-fit shank.
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13359 16 11 18 18 15 18 15 15 13
Cutting material HSSE
Surface Uncoated
Tolerance of screw taps ISO 2 (6H)
Lead angle shape C
Application type/machine type CNC,
Conventional
Twist angle 15° (right)
Coolant supply External
DIN 13359...
Ident. No.
mm mm mm mm mm
NPT 1/8 in 27 8.5 63 7 5.5 Similar to 371 010 O. R.
NPT 1/4 in 18 11.1 63 11 9 Similar to 371 020 O. R.
NPT 3/8 in 18 14.5 70 12 9 Similar to 371 030 O. R.
NPT 1/2 in 14 17.75 80 16 12 Similar to 371 040 O. R.
NPT 3/4 in 14 23 100 20 16 Similar to 371 050 O. R.
NPT 1 in 11,5 29 110 25 20 Similar to 371 060 O. R.
Unit price, €
Prod. Gr. 131
Machine tap HSSE DIN Similar to 371
for use in stainless steels

CNC/conv.
NPT HSSE TiN
C (2-3)
Application: Advantage:
For manufacturing NPT (National Pipe Taper) on CNC ƒ Innovative cutting geometry for very high No. 13360
or conventional machines in the (steel) and stainless dimensional accuracy, process reliability and chip
steel material groups up to a strength of 1000 N/ removal.
mm . 2 ƒ High-quality, torsion-resistant HSSE cutting mate-
Execution: rial and cutting edge finish for very high service life No. 13361
requirements.
ƒ No. 13360: Precision-ground, right-handed ƒ No. 13360: Specialised use with optimised chip
machine tap with transition-fit shank. geometry for use in stainless steels.
ƒ No. 13361: Precision-ground, right-handed ƒ No. 13361: Universal use for maximum flexibility
machine tap with transition-fit shank. in use.
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13360 16 11 11 10
13361 17 12 10 11
Cutting material HSSE HSSE
Surface Vaporised TiN
Tolerance of screw taps ISO 2 (6H) ISO 2 (6H)
Lead angle shape C C
Application type/machine type CNC, CNC,
Conventional Conventional
Twist angle 15° (right) 15° (right)
Coolant supply External External
DIN 13360... 13361...
Ident. No. Ident. No.
mm mm mm mm mm
NPT 1/8 in 27 8.5 90 11 9 Similar to 371 010 O. R. 010 O. R.
NPT 1/4 in 27 11 100 14 11 Similar to 371 020 O. R. - -
NPT 1/4 in 18 11 100 14 11 Similar to 371 - - 020 O. R.
NPT 3/8 in 18 14.4 110 16 12 Similar to 371 030 O. R. 030 O. R.
NPT 1/2 in 14 17.8 125 18 14.5 Similar to 371 040 O. R. 040 O. R.
NPT 3/4 in 14 23.1 140 22 18 Similar to 371 050 O. R. 050 O. R.
Unit price, €
Prod. Gr. 131
