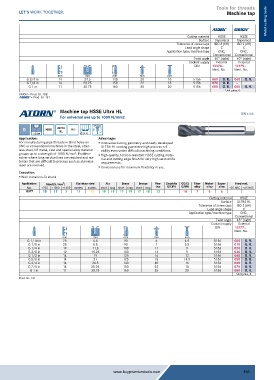

Tools for threads
Metal cutting tools
Machine tap
Cutting material HSSE HSSE
Surface Vaporised Vaporised
Tolerance of screw taps ISO 2 (6H) ISO 2 (6H)
Lead angle shape C C
Application type/machine type CNC, CNC,
Conventional Conventional
Twist angle 40° (right) 40° (right)
Coolant supply External External
DIN 13378... 13379...
Ident. No. Ident. No.
mm mm mm mm mm
G 3/4 in 14 24.5 140 20 16 5156 060 O. R. 060 O. R.
G 7/8 in 14 28.25 150 22 18 5156 070 O. R. - -
G 1 in 11 30.75 160 25 20 5156 080 O. R. 080 O. R.
Unit price, €
ORION = Prod. Gr. 1DB
a = Prod. Gr. 131
Machine tap HSSE Ultra HL DIN 5156
For universal use up to 1000 N/mm2
CNC/conv.
G HSSE ULTRA
2,5xd HL C (2-3)
Application: Advantage:
For manufacturing pipe threads in blind holes on Innovative cutting geometry and newly developed
CNC or conventional machines in the steel, stain- ULTRA HL coating guarantee high process reli-
less steel, NF metal, cast and special alloy material ability even under difficult machining conditions.
groups up to a strength of 1000 N/mm . Problem- High-quality, torsion-resistant HSSE cutting mate-
2
solver where long service lives are required and ma- rial and cutting edge finish for very high service life
terials that are difficult to process such as stainless requirements.
steel are involved.
Universal use for maximum flexibility in use.
Execution:
With transition-fit shank
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13377 18 12 8 11 10 19 19 17 19 17 18 13 18 7 6 6
Cutting material HSSE
Surface ULTRA HL
Tolerance of screw taps ISO 2 (6H)
Lead angle shape C
Application type/machine type CNC,
Conventional
Twist angle 45° (right)
Coolant supply External
DIN 13377...
Ident. No.
mm mm mm mm mm
G 1/16 in 28 6.8 90 6 4.9 5156 005 O. R.
G 1/8 in 28 8.8 90 7 5.5 5156 010 O. R.
G 1/4 in 19 11.8 100 11 9 5156 020 O. R.
G 3/8 in 19 15.25 100 12 9 5156 030 O. R.
G 1/2 in 14 19 125 16 12 5156 040 O. R.
G 5/8 in 14 21 125 18 14.5 5156 050 O. R.
G 3/4 in 14 24.5 140 20 16 5156 060 O. R.
G 7/8 in 14 28.25 150 22 18 5156 070 O. R.
G 1 in 11 30.75 160 25 20 5156 080 O. R.
Unit price, €
Prod. Gr. 131
