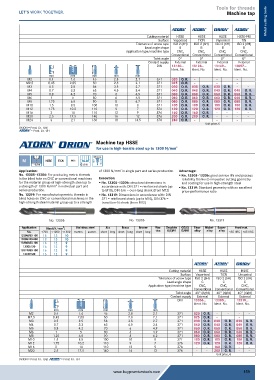

Tools for threads
Metal cutting tools
Machine tap

Cutting material HSSE HSSE HSSE HSSE-PM
Surface Vaporised TiCN Vaporised TiN
Tolerance of screw taps ISO 2 (6H) ISO 2 (6H) ISO 2 (6H) ISO 2 (6H)
Lead angle shape B B B B
Application type/machine type CNC, CNC, CNC, CNC,
Conventional Conventional Conventional Conventional
Twist angle 0° 0° 0° 0°
Coolant supply External External External External
DIN 13130... 13128... 13149... 13057...
Ident. No. Ident. No. Ident. No. Ident. No.
mm mm mm mm mm
M2 0.4 1.6 45 2.8 2.1 371 020 O. R. - - - - - -
M2.5 0.45 2.05 50 2.8 2.1 371 025 O. R. - - - - - -
M3 0.5 2.5 56 3.5 2.7 371 030 O. R. 030 O. R. 030 O. R. - -
M4 0.7 3.3 63 4.5 3.4 371 040 O. R. 040 O. R. 040 O. R. 040 O. R.
M5 0.8 4.2 70 6 4.9 371 050 O. R. 050 O. R. 050 O. R. 050 O. R.
M6 1 5 80 6 4.9 371 060 O. R. 060 O. R. 060 O. R. 060 O. R.
M8 1.25 6.8 90 8 6.2 371 080 O. R. 080 O. R. 080 O. R. 080 O. R.
M10 1.5 8.5 100 10 8 371 100 O. R. 100 O. R. 100 O. R. 100 O. R.
M12 1.75 10.2 110 9 7 376 120 O. R. 120 O. R. 120 O. R. 120 O. R.
M16 2 14 110 12 9 376 160 O. R. 160 O. R. - - - -
M20 2.5 17.5 140 16 12 376 200 O. R. 200 O. R. - - - -
M24 3 21 160 18 14.5 376 240 O. R. - - - - - -
Unit price, €
ORION = Prod. Gr. 1DB
a = Prod. Gr. 131
Machine tap HSSE
for use in high-tensile steel up to 1300 N/mm 2

CNC/conv.
M HSSE TiCN
2,5xd C (2-3)
Application: of 1300 N/mm in single part and series production. Advantage:
2
No. 13305–13306: For producing metric threads ƒ No. 13305–13306: good service life and process
in the blind hole on CNC or conventional machines Execution: reliability thanks to innovative cutting geometry
for the material group of high-strength steel up to ƒ No. 13305–13306: structural dimensions in and coating for use in high-strength steel
a strength of 1300 N/mm in individual part and accordance with: DIN 371 = reinforced shank (up ƒ No. 13319: Standard geometry with an excellent
2
series production. to M10), DIN 376 = over-long shank (from M12) price-performance ratio
No. 13319: For manufacturing metric threads in ƒ No. 13319: Dimensions in accordance with: DIN
blind holes on CNC or conventional machines in the 371 = reinforced shank (up to M10), DIN 376 =
high-strength steel material group up to a strength transition-fit shank (from M12)

No. 13305 No. 13306 No. 13319
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13305030-100 18 13 10
13305120-200 18 13 10
13306020-100 16 12 9
13306120 16 12 9
13319030-100 16 12 9
13319120 16 12 9

Cutting material HSSE HSSE HSSE
Surface Vaporised TiCN Uncoated
Tolerance of screw taps ISO 2 (6H) ISO 2 (6H) ISO 2 (6H)
Lead angle shape C C C
Application type/machine type CNC, CNC, CNC,
Conventional Conventional Conventional
Twist angle 40° (right) 40° (right) 40° (right)
Coolant supply External External External
DIN 13306... 13305... 13319...
Ident. No. Ident. No. Ident. No.
mm mm mm mm mm
M2 0.4 1.6 45 2.8 2.1 371 020 O. R. - - - -
M2.5 0.45 2.05 50 2.8 2.1 371 025 O. R. - - - -
M3 0.5 2.5 56 3.5 2.7 371 030 O. R. 030 O. R. 030 O. R.
M4 0.7 3.3 63 4.5 3.4 371 040 O. R. 040 O. R. 040 O. R.
M5 0.8 4.2 70 6 4.9 371 050 O. R. 050 O. R. 050 O. R.
M6 1 5 80 6 4.9 371 060 O. R. 060 O. R. 060 O. R.
M8 1.25 6.8 90 8 6.2 371 080 O. R. 080 O. R. 080 O. R.
M10 1.5 8.5 100 10 8 371 100 O. R. 100 O. R. 100 O. R.
M12 1.75 10.2 110 9 7 376 120 O. R. 120 O. R. 120 O. R.
M16 2 14 110 12 9 376 - - 160 O. R. - -
M20 2.5 17.5 140 16 12 376 - - 200 O. R. - -
Unit price, €
ORION = Prod. Gr. 1DB; a = Prod. Gr. 131
