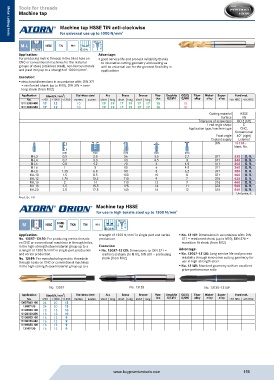

Page 158 - Buy Premium Tools ATORN Catalogue

Tools for threads
Machine tap

Machine tap HSSE TiN anti-clockwise
for universal use up to 1000 N/mm 2
Metal cutting tools
Metal cutting tools
CNC/conv.
M-L HSSE TiN
2,5xd C (2-3)
Application: Advantage:
For producing metric threads in the blind hole on ƒ good service life and process reliability thanks
CNC or conventional machines for the material to innovative cutting geometry and coating as
groups of steel, (stainless steel), non-ferrous metals well as universal use for the greatest flexibility in
and (cast iron) up to a strength of 1000 N/mm . 2 applications
Execution:
ƒ structural dimensions in accordance with: DIN 371
= reinforced shank (up to M10), DIN 376 = over-
long shank (from M12)
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13113330-400 17 12 10 19 19 17 19 17 17 15 18
13113420-540 17 12 10 19 19 17 19 17 17 15 18
Cutting material HSSE
Surface TiN
Tolerance of screw taps ISO 2 (6H)
Lead angle shape C
Application type/machine type CNC,
Conventional
Twist angle 40° (right)
Coolant supply External
DIN 13113...
Ident. No.
mm mm mm mm mm
M-L3 0.5 2.5 56 3.5 2.7 371 330 O. R.
M-L4 0.7 3.3 63 4.5 3 371 340 O. R.
M-L5 0.8 4.2 70 6 4.9 371 350 O. R.
M-L6 1 5 80 6 4.9 371 360 O. R.
M-L8 1.25 6.8 90 8 6.2 371 380 O. R.
M-L10 1.5 8.5 100 10 8 371 400 O. R.
M-L12 1.75 10.2 110 9 7 376 420 O. R.
M-L16 2 14 110 12 9 376 460 O. R.
M-L18 2.5 15.5 125 14 11 376 500 O. R.
M-L20 2.5 17.5 140 16 12 376 540 O. R.
Unit price, €
Prod. Gr. 131
Machine tap HSSE
for use in high-tensile steel up to 1300 N/mm 2
CNC/conv.
M HSSE HSSE- TiCN TiN
PM
3xd B (3,5-5)
Application: strength of 1300 N/mm in single part and series ƒ No. 13149: Dimensions in accordance with: DIN
2
No. 13057–13130: For producing metric threads production. 371 = reinforced shank (up to M10), DIN 376 =
on CNC or conventional machines in through holes, transition-fit shank (from M12)
in the high-strength steel material group up to a Execution:
strength of 1300 N/mm in single-part production ƒ No. 13057–13130: Dimensions to: DIN 371 = Advantage:
2
and series production. reinforced shank (to M10), DIN 376 = protruding ƒ No. 13057–13130: Long service life and process
No. 13149: For manufacturing metric threads in shank (from M12) reliability through innovative cutting geometry for
through holes on CNC or conventional machines use in high-strength steel
in the high-strength steel material group up to a ƒ No. 13149: Standard geometry with an excellent
price-performance ratio
No. 13057 No. 13128 No. 13130–13149
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
13057040-100 24 20 15
13057120 24 20 15
13128030-100 18 13 10
13128120-200 18 13 10
13130020-100 16 12 9
13130120-240 16 12 9
13149030-100 16 12 9
13149120 16 12 9
