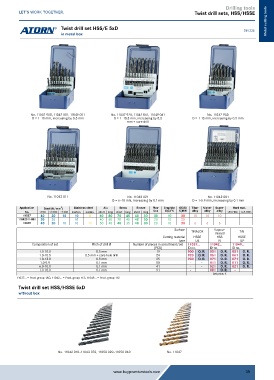

Page 39 - Buy Premium Tools ATORN Catalogue

Drilling tools
Twist drill sets, HSS/HSSE

Twist drill set HSS/E 5xD Metal cutting tools
in metal box DIN 338

No. 11037 900, 11042 051, 11049 051 No. 11037 920, 11042 061, 11049 061 No. 11037 930
D = 1–10 mm, increasing by 0.5 mm D = 1–10.5 mm, increasing by 0.5 D = 1-13 mm, increasing by 0.5 mm
mm + core drill

No. 11042 011 No. 11042 021 No. 11042 081
D = 6–10 mm, increasing by 0.1 mm D = 1-5.9 mm, increasing by 0.1 mm
2
Application Steel (N/mm ) Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11037 40 20 10 10 8 60 80 70 45 40 30 30 10 30 10 10 10
11042011-081 30 20 10 40 60 70 45 40 30 20 10 25
11049 40 20 10 10 10 50 45 40 35 40 30 20 10 30 6 6 6
Surface TiNALOX Vapour- TiN
HSS
Cutting material HSSE treated HSSE
Type U4 N TLP
Composition of set Pitch of drill Ø Number of pieces in assortment/set 11037... 11042... 11049...
(PCS) ID no. ID no. ID no.
1.0-10.0 0.5 mm 19 900 O. R. 051 O. R. 051 O. R.
1.0-10.5 0.5 mm + core-hole drill 24 920 O. R. 061 O. R. 061 O. R.
1.0-13.0 0.5 mm 25 930 O. R. 071 O. R. 071 O. R.
1.0-5.9 0.1 mm 50 - - 011 O. R. 011 O. R.
6.0-10.0 0.1 mm 41 - - 021 O. R. 021 O. R.
1.0-10.0 0.1 mm 91 - - 081 O. R. - -
Set price, €
11037... = Prod. group 1AG; 11042... = Prod. group 112; 11049... = Prod. group 112
Twist drill set HSS/HSSE 5xD
without box

No. 11042 010–11043 070, 11050 020–11050 060 No. 11047
