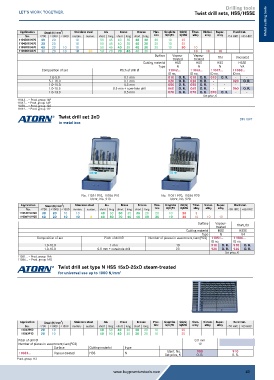

Page 40 - Buy Premium Tools ATORN Catalogue

Drilling tools
Twist drill sets, HSS/HSSE Metal cutting tools

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11042010-070 30 20 10 50 45 40 35 40 30 20 10 25
11043010-070 30 20 10 50 45 40 35 40 30 20 10 25
11047010-070 40 20 10 10 50 45 40 35 40 30 20 10 30 10
11050010-070 30 20 10 10 20 50 70 70 45 40 30 10 10 10
Surface Vapour- Vapour- TiN Uncoated
treated treated
Cutting material HSS HSS HSS HSSE
Type N N N VA
Composition of set Pitch of drill Ø 11042... 11043... 11047... 11050...
ID no. ID no. ID no. ID no.
1.0-5.0 0.1 mm 010 O. R. 010 O. R. 010 O. R. - -
5.1-10.0 0.1 mm 020 O. R. 020 O. R. - - 020 O. R.
1.0-10.0 0.5 mm 050 O. R. 050 O. R. - - - -
1.0-10.5 0.5 mm + core-hole drill 060 O. R. 060 O. R. - - 060 O. R.
1.0-13.0 0.5 mm 070 O. R. 070 O. R. 070 O. R. - -
Set price, €
11043... = Prod. group 1AP
11047... = Prod. group 1AP
11050... = Prod. group 102
11042... = Prod. group 112
Twist drill set 3xD
in metal box DIN 1897

No. 11051 910, 11086 910 No. 11051 920, 11086 920
Ident. No. 910 Ident. No. 920
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11051910-920 30 20 10 10 40 60 50 35 35 20 20 10 20 8
11086910-920 40 20 10 10 8 60 80 70 45 40 30 30 10 30 10 10 10
Surface Vapour-
treated TiNALOX
Cutting material HSS HSSE
Type N U4
Composition of set Pitch of drill Ø Number of pieces in assortment/set (PCS) 11051... 11086...
ID no. ID no.
1.0-10.0 1 mm 10 910 O. R. 910 O. R.
1.0-10.0 0.5 mm + core-hole drill 23 920 O. R. 920 O. R.
Set price, €
11051... = Prod. group 1AA
11086... = Prod. group 1AG
Twist drill set type N HSS 15xD-25xD steam-treated
for universal use up to 1000 N/mm 2

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11063900 20 10 40 50 40 30 30 20 10 20
11063910 20 10 40 50 40 30 30 20 10 20
Pitch of drill Ø 0.5 mm 1 mm
Number of pieces in assortment/set (PCS) 19 9
Surface Cutting material Type
910
Ident. No.
900
11063... Vapour-treated HSS N Set price, € O. R. O. R.
Prod. group 112
