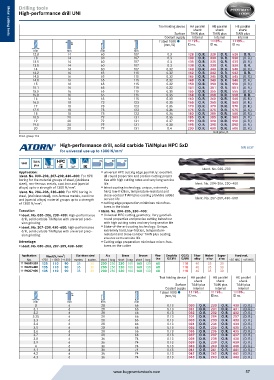

Drilling tools
High-performance drill UNI

Tool holding device HA parallel HB parallel HE parallel
shank shank shank
Surface TiAlN plus TiAlN plus TiAlN plus
Coolant supply Internal Internal Internal
Metal cutting tools
Metal cutting tools
f steel 1000 ˜ 11195... 11195... 11195...
h6 (mm/U) ID no. ID no. ID no.
mm mm mm mm
12.8 14 60 107 0.3 128 O. R. 328 O. R. 528 O. R.
13 14 60 107 0.3 130 O. R. 330 O. R. 530 (O. R.)
13.5 14 60 107 0.3 135 O. R. 335 O. R. 535 (O. R.)
13.8 14 60 107 0.3 138 O. R. 338 O. R. 538 O. R.
14 14 60 107 0.32 140 O. R. 340 O. R. 540 (O. R.)
14.2 16 65 115 0.32 142 O. R. 342 O. R. 542 O. R.
14.5 16 65 115 0.32 145 O. R. 345 O. R. 545 (O. R.)
14.8 16 65 115 0.32 148 O. R. 348 O. R. 548 (O. R.)
15 16 65 115 0.32 150 O. R. 350 O. R. 550 (O. R.)
15.1 16 65 115 0.32 151 O. R. 351 O. R. 551 (O. R.)
15.5 16 65 115 0.35 155 O. R. 355 O. R. 555 (O. R.)
15.8 16 65 115 0.35 158 O. R. 358 O. R. 558 O. R.
16 16 65 115 0.35 160 O. R. 360 O. R. 560 (O. R.)
16.5 18 73 123 0.35 165 O. R. 365 O. R. 565 (O. R.)
17 18 73 123 0.36 170 O. R. 370 O. R. 570 (O. R.)
17.5 18 73 123 0.36 175 O. R. 375 O. R. 575 (O. R.)
18 18 73 123 0.36 180 O. R. 380 O. R. 580 (O. R.)
18.5 20 79 131 0.36 185 O. R. 385 O. R. 585 (O. R.)
19 20 79 131 0.37 190 O. R. 390 O. R. 590 (O. R.)
19.5 20 79 131 0.38 195 O. R. 395 O. R. 595 (O. R.)
20 20 79 131 0.4 200 O. R. 400 O. R. 600 (O. R.)
Unit price, €
Prod. group 113
High-performance drill, solid carbide TiAlNplus HPC 5xD DIN 6537
for universal use up to 1300 N/mm 2

VHM TiAlN HPC HA HB HE
plus UNI IK
5xD 140° Ident. No. 030–203
Application: ƒ universal HPC cutting edge geometry: excellent
Ident. No. 030–203, 207–209, 430–600: For HPC all-round properties and precise cutting proper-
boring for the material groups of steel, (stainless ties with high cutting rates and very long service
steel), non-ferrous metals, cast iron and (special life Ident. No. 204–206, 230–400
alloys) up to a strength of 1300 N/mm . 2 ƒ latest coating technology: unique, extremely
Ident. No. 204–206, 230–400: For HPC boring in hard, low-friction, temperature-resistant and
steel, (stainless steel), non-ferrous metals, cast iron close-contour TiAlN plus coating provides added Ident. No. 207–209, 430–600
and (special alloys) material groups up to a strength service life
of 1300 N/mm . 2 ƒ cutting edge preparation minimises microfrac-
tures in the blade
Execution: ƒ Ident. No. 204–206, 230–400:
ƒ Ident. No. 030–206, 230–400: High-performance ƒ Universal HPC cutting geometry: Very good all-
drill, solid carbide TiAlNplus with universal preci- round properties and precise cutting behaviour
sion grinding with high cutting rates and very long service life
ƒ Ident. No. 207–209, 430–600: high-performance ƒ State-of-the-art coating technology: Unique,
drill, solid carbide TiAlNplus with universal preci- extremely hard, low-friction, temperature-
sion grinding resistant and close contour TiAlN plus coating
ensures extra service life
Advantage: ƒ Cutting edge preparation minimises micro-frac-
ƒ Ident. No. 030–203, 207–209, 430–600: tures on the cutter
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11196030-203 135 110 90 35 30 200 250 230 180 160 130 60 110 40 35 30
11196204-400 135 110 90 35 30 200 250 230 180 160 130 60 110 40 35 30
11196207-600 135 110 90 35 30 200 250 230 180 160 130 60 110 40 35 30
Tool holding device HA parallel HB parallel HE parallel
shank shank shank
Surface TiAlN plus TiAlN plus TiAlN plus
Coolant supply Internal Internal Internal
f steel 1000 ˜ 11196... 11196... 11196...
h6 (mm/U) ID no. ID no. ID no.
mm mm mm mm
3 6 28 66 0.13 030 O. R. 230 O. R. 430 (O. R.)
3.1 6 28 66 0.13 031 O. R. 231 O. R. 431 (O. R.)
3.2 6 28 66 0.13 032 O. R. 232 O. R. 432 (O. R.)
3.25 6 28 66 0.13 201 O. R. 204 O. R. 207 (O. R.)
3.3 6 28 66 0.13 033 O. R. 233 O. R. 433 (O. R.)
3.4 6 28 66 0.13 034 O. R. 234 O. R. 434 (O. R.)
3.5 6 28 66 0.13 035 O. R. 235 O. R. 435 (O. R.)
3.6 6 28 66 0.13 036 O. R. 236 O. R. 436 (O. R.)
3.7 6 28 66 0.13 037 O. R. 237 O. R. 437 (O. R.)
3.8 6 36 74 0.13 038 O. R. 238 O. R. 438 (O. R.)
3.9 6 36 74 0.13 039 O. R. 239 O. R. 439 (O. R.)
4 6 36 74 0.13 040 O. R. 240 O. R. 440 (O. R.)
4.1 6 36 74 0.13 041 O. R. 241 O. R. 441 (O. R.)
4.2 6 36 74 0.13 042 O. R. 242 O. R. 442 (O. R.)
4.3 6 36 74 0.13 043 O. R. 243 O. R. 443 (O. R.)
