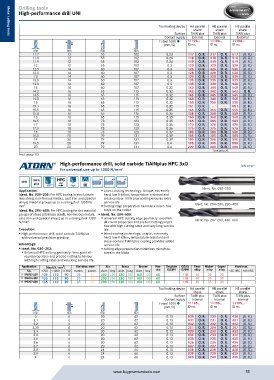

Page 55 - Buy Premium Tools ATORN Catalogue

Drilling tools
High-performance drill UNI

Tool holding device HA parallel HB parallel HE parallel
shank shank shank
Surface TiAlN plus TiAlN plus TiAlN plus
Coolant supply External External External
Metal cutting tools
Metal cutting tools
f steel 1000 ˜ 11194... 11194... 11194...
h6 (mm/U) ID no. ID no. ID no.
mm mm mm mm
11.7 12 55 102 0.23 117 O. R. 317 O. R. 517 (O. R.)
11.8 12 55 102 0.24 118 O. R. 318 O. R. 518 (O. R.)
11.9 12 55 102 0.24 119 O. R. 319 O. R. 519 (O. R.)
12 12 55 102 0.3 120 O. R. 320 O. R. 520 (O. R.)
12.5 14 60 107 0.3 125 O. R. 325 O. R. 525 (O. R.)
12.8 14 60 107 0.3 128 O. R. 328 O. R. 528 (O. R.)
13 14 60 107 0.3 130 O. R. 330 O. R. 530 (O. R.)
13.5 14 60 107 0.3 135 O. R. 335 O. R. 535 (O. R.)
13.8 14 60 107 0.3 138 O. R. 338 O. R. 538 (O. R.)
14 14 60 107 0.32 140 O. R. 340 O. R. 540 (O. R.)
14.2 16 65 115 0.32 142 O. R. 342 O. R. 542 O. R.
14.5 16 65 115 0.32 145 O. R. 345 O. R. 545 (O. R.)
14.8 16 65 115 0.32 148 O. R. 348 O. R. 548 (O. R.)
15 16 65 115 0.32 150 O. R. 350 O. R. 550 (O. R.)
15.1 16 65 115 0.32 151 O. R. - - 551 (O. R.)
15.5 16 65 115 0.35 155 O. R. 355 O. R. 555 (O. R.)
15.8 16 65 115 0.35 158 O. R. 358 O. R. 558 (O. R.)
16 16 65 115 0.35 160 O. R. 360 O. R. 560 (O. R.)
16.5 18 73 123 0.35 165 O. R. 365 O. R. 565 (O. R.)
17 18 73 123 0.36 170 O. R. 370 O. R. 570 (O. R.)
17.5 18 73 123 0.36 175 O. R. 375 O. R. 575 (O. R.)
18 18 73 123 0.37 180 O. R. 380 O. R. 580 (O. R.)
18.5 20 79 131 0.39 185 O. R. 385 O. R. 585 (O. R.)
19 20 79 131 0.39 190 O. R. 390 O. R. 590 (O. R.)
19.5 20 79 131 0.4 195 O. R. 395 O. R. 595 (O. R.)
20 20 79 131 0.4 200 O. R. 400 O. R. 600 (O. R.)
Unit price, €
Prod. group 113
High-performance drill, solid carbide TiAlNplus HPC 3xD
for universal use up to 1300 N/mm 2 DIN 6537

VHM TiAlN HPC HA HB HE
plus UNI IK
3xD 140°
Application: ƒ Latest coating technology: Unique, extremely Ident. No. 030–203
Ident. No. 030–203: For HPC boring in steel, (stain- hard, low-friction, temperature-resistant and
less steel), non-ferrous metals, cast iron and (special close contour TiAlN plus coating ensures extra
alloys) material groups up to a strength of 1300 N/ service life Ident. No. 204–206, 230–400
mm . 2 ƒ Cutting edge preparation minimises micro-frac-
Ident. No. 204–600: For HPC boring for the material tures on the cutter
groups of steel, (stainless steel), non-ferrous metals, ƒ Ident. No. 204–600:
cast iron and (special alloys) up to a strength of 1300 ƒ universal HPC cutting edge geometry: excellent Ident. No. 207–209, 430–600
N/mm . 2 all-round properties and precise cutting proper-
ties with high cutting rates and very long service
Execution: life
ƒ High-performance drill, solid carbide TiAlNplus ƒ latest coating technology: unique, extremely
with universal precision grinding hard, low-friction, temperature-resistant and
Advantage: close-contour TiAlN plus coating provides added
service life
ƒ Ident. No. 030–203: ƒ cutting edge preparation minimises microfrac-
ƒ Universal HPC cutting geometry: Very good all- tures in the blade
round properties and precise cutting behaviour
with high cutting rates and very long service life
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11195030-203 135 110 90 35 30 200 250 230 180 160 130 60 110 40 35 30
11195204-400 135 110 90 35 30 200 250 230 180 160 130 60 110 40 35 30
11195207-600 135 110 90 35 30 200 250 230 180 160 130 60 110 40 35 30
Tool holding device HA parallel HB parallel HE parallel
shank shank shank
Surface TiAlN plus TiAlN plus TiAlN plus
Coolant supply Internal Internal Internal
f steel 1000 ˜ 11195... 11195... 11195...
h6 (mm/U) ID no. ID no. ID no.
mm mm mm mm
3 6 20 62 0.13 030 O. R. 230 O. R. 430 (O. R.)
3.1 6 20 62 0.13 031 O. R. 231 O. R. 431 (O. R.)
3.2 6 20 62 0.13 032 O. R. 232 O. R. 432 (O. R.)
3.25 6 20 62 0.13 201 O. R. 204 O. R. 207 (O. R.)
3.3 6 20 62 0.13 033 O. R. 233 O. R. 433 (O. R.)
3.4 6 20 62 0.13 034 O. R. 234 O. R. 434 (O. R.)
3.5 6 20 62 0.13 035 O. R. 235 O. R. 435 (O. R.)
3.6 6 20 62 0.13 036 O. R. 236 O. R. 436 (O. R.)
3.7 6 20 62 0.13 037 O. R. 237 O. R. 437 (O. R.)
3.8 6 24 66 0.13 038 O. R. 238 O. R. 438 (O. R.)
3.9 6 24 66 0.13 039 O. R. 239 O. R. 439 (O. R.)
4 6 24 66 0.13 040 O. R. 240 O. R. 440 (O. R.)
