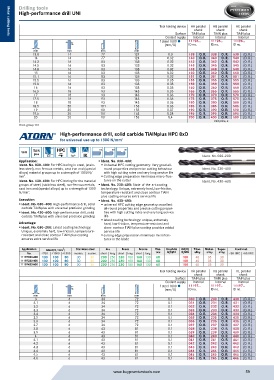

P. 59
Drilling tools
High-performance drill UNI
Tool holding device HA parallel HB parallel HE parallel
shank shank shank
Surface TiAlN plus TiAlN plus TiAlN plus
Coolant supply Internal Internal Internal
Metal cutting tools
Metal cutting tools
f steel 1000 11196... 11196... 11196...
h6 (mm/U) ID no. ID no. ID no.
mm mm mm mm
13.8 14 77 124 0.3 138 O. R. 338 O. R. 538 (O. R.)
14 14 77 124 0.32 140 O. R. 340 O. R. 540 (O. R.)
14.2 16 83 133 0.32 142 O. R. 342 O. R. 542 (O. R.)
14.5 16 83 133 0.32 145 O. R. 345 O. R. 545 (O. R.)
14.8 16 83 133 0.32 148 O. R. 348 O. R. 548 (O. R.)
15 16 83 133 0.32 150 O. R. 350 O. R. 550 (O. R.)
15.1 16 83 133 0.32 151 O. R. 351 O. R. 551 (O. R.)
15.5 16 83 133 0.35 155 O. R. 355 O. R. 555 (O. R.)
15.8 16 83 133 0.35 158 O. R. 358 O. R. 558 (O. R.)
16 16 83 133 0.35 160 O. R. 360 O. R. 560 (O. R.)
16.5 18 93 143 0.35 165 O. R. 365 O. R. 565 (O. R.)
17 18 93 143 0.36 170 O. R. 370 O. R. 570 (O. R.)
17.5 18 93 143 0.36 175 O. R. 375 O. R. 575 (O. R.)
18 18 93 143 0.36 180 O. R. 380 O. R. 580 (O. R.)
18.5 20 101 153 0.36 185 O. R. 385 O. R. 585 (O. R.)
19 20 101 153 0.37 190 O. R. 390 O. R. 590 (O. R.)
19.5 20 101 153 0.38 195 O. R. 395 O. R. 595 (O. R.)
20 20 101 153 0.4 200 O. R. 400 O. R. 600 (O. R.)
Unit price, €
Prod. group 113
High-performance drill, solid carbide TiAlNplus HPC 8xD
for universal use up to 1300 N/mm 2
VHM TiAlN HPC HA HB HE
plus UNI IK
8xD 140° Ident. No. 030–200
Application: Ident. No. 030–400:
Ident. No. 030–400: For HPC boring in steel, (stain- Universal HPC cutting geometry: Very good all-
less steel), non-ferrous metals, cast iron and (special round properties and precise cutting behaviour Ident. No. 230–400
alloys) material groups up to a strength of 1300 N/ with high cutting rates and very long service life
mm . 2 Cutting edge preparation minimises micro-frac-
Ident. No. 430–600: For HPC boring for the material tures on the cutter Ident. No. 430–600
groups of steel, (stainless steel), non-ferrous metals, Ident. No. 230–400: State-of-the-art coating
cast iron and (special alloys) up to a strength of 1300 technology: Unique, extremely hard, low-friction,
N/mm . 2 temperature-resistant and close contour TiAlN
plus coating ensures extra service life
Execution: Ident. No. 430–600:
Ident. No. 030–400: High-performance drill, solid universal HPC cutting edge geometry: excellent
carbide TiAlNplus with universal precision grinding all-round properties and precise cutting proper-
Ident. No. 430–600: high-performance drill, solid ties with high cutting rates and very long service
carbide TiAlNplus with universal precision grinding life
latest coating technology: unique, extremely
Advantage: hard, low-friction, temperature-resistant and
Ident. No. 030–200: Latest coating technology: close-contour TiAlN plus coating provides added
Unique, extremely hard, low-friction, temperature- service life
resistant and close contour TiAlN plus coating cutting edge preparation minimises microfrac-
ensures extra service life tures in the blade
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11197030-200 130 100 80 30 30 200 250 230 180 160 130 60 100 40 35 30
11197230-400 130 100 80 30 30 200 250 230 180 160 130 60 100 40 35 30
11197430-600 130 100 80 30 30 200 250 230 180 160 130 60 100 40 35 30
Tool holding device HA parallel HB parallel HE parallel
shank shank shank
Surface TiAlN plus TiAlN plus TiAlN plus
Coolant supply Internal Internal Internal
f steel 1000 11197... 11197... 11197...
h6 (mm/U) ID no. ID no. ID no.
mm mm mm mm
3 6 34 72 0.1 030 O. R. 230 O. R. 430 (O. R.)
3.1 6 34 72 0.1 031 O. R. 231 O. R. 431 (O. R.)
3.2 6 34 72 0.1 032 O. R. 232 O. R. 432 (O. R.)
3.3 6 34 72 0.1 033 O. R. 233 O. R. 433 (O. R.)
3.4 6 34 72 0.1 034 O. R. 234 O. R. 434 (O. R.)
3.5 6 34 72 0.1 035 O. R. 235 O. R. 435 (O. R.)
3.6 6 34 72 0.1 036 O. R. 236 O. R. 436 (O. R.)
3.7 6 34 72 0.1 037 O. R. 237 O. R. 437 (O. R.)
3.8 6 43 81 0.1 038 O. R. 238 O. R. 438 (O. R.)
3.9 6 43 81 0.1 039 O. R. 239 O. R. 439 (O. R.)
4 6 43 81 0.1 040 O. R. 240 O. R. 440 (O. R.)
4.1 6 43 81 0.1 041 O. R. 241 O. R. 441 (O. R.)
4.2 6 43 81 0.1 042 O. R. 242 O. R. 442 (O. R.)
4.3 6 43 81 0.1 043 O. R. 243 O. R. 443 (O. R.)
4.4 6 43 81 0.1 044 O. R. 244 O. R. 444 (O. R.)
4.5 6 43 81 0.1 045 O. R. 245 O. R. 445 (O. R.)
4.6 6 43 81 0.1 046 O. R. 246 O. R. 446 (O. R.)
