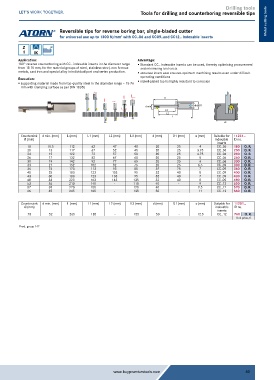

Drilling tools
Tools for drilling and counterboring reversible tips
Reversible tips for reverse boring bar, single-bladed cutter Metal cutting tools
for universal use up to 1300 N/mm with CC..06 and CC09..and CC12.. Indexable inserts
2
Z HE
1 IK
Application: Advantage:
180° reverse counterboring with CC.. indexable inserts in the diameter range Standard CC.. indexable inserts can be used, thereby optimising procurement
from 18-76 mm, for the material groups of steel, stainless steel, non-ferrous and minimising tool costs
metals, cast iron and special alloy in individual part and series production. accurate insert seat ensures optimum machining results even under difficult
operating conditions
Execution: nickel-plated tool is highly resistant to corrosion
supporting material made from top-quality steel in the diameter range = 18-76
mm with clamping surface as per DIN 1835E
L1
d min dh6 D1
L3
L2
L
e
e D
Countersink d min. (mm) L (mm) L1 (mm) L2 (mm) L3 (mm) d (mm) D1 (mm) e (mm) Suitable for 11251...
Ø (mm) indexable ID no.
inserts
18 10.5 112 62 47 40 20 25 4 CC..06 180 O. R.
20 13 117 67 52 45 20 25 3.75 CC..06 200 O. R.
24 15 122 72 57 50 20 25 4.75 CC..06 240 O. R.
26 17 132 82 67 60 20 25 5 CC..06 260 O. R.
30 19 142 92 77 65 20 25 6 CC..06 300 O. R.
33 21 152 102 82 75 20 25 6.5 CC..09 330 O. R.
36 23 173 113 93 85 32 25 7 CC..09 360 O. R.
40 25 183 123 103 95 32 40 8 CC..09 400 O. R.
43 30 183 123 103 95 32 40 7 CC..09 430 O. R.
48 33 223 163 143 135 32 40 8 CC..09 480 O. R.
53 36 210 140 - 110 40 - 9 CC..12 530 O. R.
57 39 220 150 - 120 40 - 9.5 CC..12 570 O. R.
66 45 245 165 - 135 50 - 11 CC..12 660 O. R.
Countersink d min. (mm) L (mm) L1 (mm) L2 (mm) L3 (mm) d (mm) D1 (mm) e (mm) Suitable for 11251...
Ø (mm) indexable ID no.
inserts
78 52 265 185 - 155 50 - 12.5 CC..12 760 O. R.
Unit price, €
Prod. group 142
