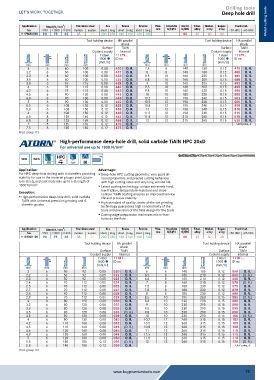

Page 75 - Buy Premium Tools ATORN Catalogue

Drilling tools
Deep hole drill

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat. Metal cutting tools
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11179430-520 90 75 65 35 30 200 250 180 160 160 130 80 35 30 30
Tool holding device HA parallel Tool holding device HA parallel
shank shank
Surface TiAlN Surface TiAlN
Coolant supply Internal Coolant supply Internal
f steel 11179... f steel 11179...
h6 1000 ˜ ID no. h6 1000 ˜ ID no.
(mm/U) (mm/U)
mm mm mm mm mm mm mm mm
3 6 60 100 0.08 430 O. R. 7.8 8 140 180 0.12 478 O. R.
3.2 6 60 100 0.08 432 O. R. 8 8 140 180 0.12 480 O. R.
3.3 6 60 100 0.08 433 O. R. 8.5 10 160 205 0.15 485 O. R.
3.5 6 60 100 0.08 435 O. R. 8.8 10 160 205 0.15 488 O. R.
3.8 6 75 115 0.08 438 O. R. 9 10 160 205 0.15 490 O. R.
4 6 75 115 0.08 440 O. R. 9.5 10 160 205 0.15 495 O. R.
4.2 6 75 115 0.08 442 O. R. 9.8 10 180 225 0.15 498 O. R.
4.5 6 90 130 0.08 445 O. R. 10 10 180 225 0.15 500 O. R.
4.8 6 90 130 0.08 448 O. R. 10.2 12 190 240 0.15 502 O. R.
5 6 90 130 0.08 450 O. R. 10.5 12 190 240 0.15 505 O. R.
5.5 6 108 150 0.12 455 O. R. 10.8 12 190 240 0.15 508 O. R.
5.8 6 108 150 0.12 458 O. R. 11 12 190 240 0.15 510 O. R.
6 6 108 150 0.12 460 O. R. 11.5 12 190 240 0.15 515 O. R.
6.5 8 125 165 0.12 465 O. R. 11.8 12 215 265 0.15 518 O. R.
6.8 8 125 165 0.12 468 O. R. 12 12 215 265 0.15 520 O. R.
7 8 125 165 0.12 470 O. R. Unit price, €
7.5 8 140 180 0.12 475 O. R.
Prod. group 113
High-performance deep-hole drill, solid carbide TiAlN HPC 20xD
For universal use up to 1300 N/mm 2
HPC HA
VHM TiAlN UNI
20xD 140° IK
Application: Advantage:
For HPC deep-hole drilling with 4 chamfers providing ƒ Deep-hole HPC cutting geometry: very good all-
stability for use in the material groups steel, (stain- round properties and precise cutting behaviour
less steel), and cast materials up to a strength of with high cutting rates and very long service life.
1300 N/mm . 2 ƒ Latest coating technology: unique extremely hard,
Execution: low-friction, temperature-resistant and close
contour TiAlN coating ensures an improved service
ƒ High-performance deep-hole drill, solid carbide life and process stability
TiAlN with universal precision grinding and 4 ƒ High standard of quality: state-of-the-art grinding
chamfer guides
technology guarantees high concentricity of the
tools and precision of the flute design for the tools
ƒ Cutting edge preparation minimises micro-frac-
tures on the flute
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11181020-120 90 75 65 35 30 200 250 180 160 160 130 80 35 30 30
Tool holding device HA parallel Tool holding device HA parallel
shank shank
Surface TiAlN Surface TiAlN
Coolant supply Internal Coolant supply Internal
f steel 11181... f steel 11181...
h6 1000 ˜ ID no. h6 1000 ˜ ID no.
(mm/U) (mm/U)
mm mm mm mm mm mm mm mm
2 6 50 92 0.05 020 O. R. 6 6 140 185 0.12 060 O. R.
2.2 6 50 92 0.05 022 O. R. 6.5 8 160 210 0.12 065 (O. R.)
2.3 6 50 92 0.05 023 O. R. 6.8 8 160 210 0.12 068 O. R.
2.4 6 70 112 0.05 024 O. R. 7 8 160 210 0.12 070 (O. R.)
2.5 6 70 112 0.05 025 O. R. 7.5 8 180 230 0.12 075 O. R.
2.7 6 70 112 0.05 027 O. R. 7.8 8 180 230 0.12 078 O. R.
2.8 6 70 112 0.05 028 O. R. 8 8 180 230 0.12 080 O. R.
2.9 6 70 112 0.05 029 O. R. 8.5 10 195 260 0.15 085 (O. R.)
3 6 80 120 0.08 030 O. R. 8.8 10 230 290 0.15 088 O. R.
3.2 6 80 120 0.08 032 O. R. 9 10 230 290 0.15 090 O. R.
3.3 6 80 120 0.08 033 O. R. 9.5 10 230 290 0.15 095 O. R.
3.5 6 80 120 0.08 035 (O. R.) 9.8 10 230 290 0.15 098 O. R.
3.8 6 90 130 0.08 038 O. R. 10 10 230 290 0.15 100 (O. R.)
4 6 90 130 0.08 040 O. R. 10.2 12 268 315 0.15 102 O. R.
4.2 6 110 160 0.08 042 O. R. 10.5 12 268 315 0.15 105 O. R.
4.5 6 110 160 0.08 045 (O. R.) 10.8 12 268 315 0.15 108 O. R.
4.6 6 120 160 0.08 046 O. R. 11 12 268 315 0.15 110 O. R.
4.8 6 120 160 0.08 048 O. R. 11.5 12 268 315 0.15 115 O. R.
5 6 120 160 0.08 050 O. R. 11.8 12 268 315 0.15 118 O. R.
5.5 6 140 185 0.12 055 (O. R.) 12 12 268 315 0.15 120 (O. R.)
5.8 6 140 185 0.12 058 O. R. Unit price, €
Prod. group 113
