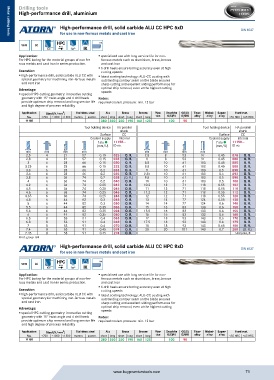

P. 71
Drilling tools
High-performance drill, aluminium
High-performance drill, solid carbide ALU CC HPC 5xD DIN 6537
for use in non-ferrous metals and cast iron
Metal cutting tools
Metal cutting tools
HPC HA
VHM CC ALU
5xD 135° IK
Application: specialised use with long service life for non-
For HPC boring for the material groups of non-fer- ferrous metals such as aluminium, brass, bronze
rous metals and cast iron in series production. and cast iron
6 drill heels ensure boring accuracy even at high
Execution: cutting speeds
high-performance drill, solid carbide ALU CC with latest coating technology: ALU-CC coating with
special geometry for machining non-ferrous metals outstanding contour seam on the blade ensures
and cast iron sharp cutting and excellent sliding performance for
Advantage: optimal chip removal, even at the highest cutting
speeds
special HPC cutting geometry: innovative cutting
geometry with 15° twist angle and 6 drill heels Notes:
provide optimum chip removal and long service life required coolant pressure: min. 12 bar
and high degree of process reliability
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11158 380 350 250 190 160 120 100 90
Tool holding device HA parallel Tool holding device HA parallel
shank shank
Surface CC Surface CC
Coolant supply Internal Coolant supply Internal
f alu 11158... f alu 11158...
h6 (mm/U) ID no. h6 (mm/U) ID no.
mm mm mm mm mm mm mm mm
2.5 4 21 57 0.15 025 O. R. 7.8 8 53 91 0.45 078 O. R.
2.8 4 21 57 0.15 028 O. R. 8 8 53 91 0.45 080 O. R.
3 6 28 66 0.15 030 O. R. 8.5 10 61 103 0.45 085 O. R.
3.25 6 28 66 0.15 232 O. R. 8.8 10 61 103 0.45 088 O. R.
3.3 6 28 66 0.2 033 O. R. 9 10 61 103 0.5 090 O. R.
3.5 6 28 66 0.2 035 O. R. 9.35 10 61 103 0.5 093 O. R.
3.8 6 36 74 0.2 038 (O. R.) 9.8 10 61 103 0.5 098 O. R.
4 6 36 74 0.2 040 O. R. 10 10 61 103 0.5 100 O. R.
4.2 6 36 74 0.25 042 O. R. 10.2 12 71 118 0.55 102 O. R.
4.5 6 36 74 0.25 045 O. R. 11 12 71 118 0.55 110 O. R.
4.6 6 36 74 0.25 046 O. R. 11.2 12 71 118 0.55 112 O. R.
4.65 6 36 74 0.25 246 O. R. 12 12 71 118 0.55 120 O. R.
4.8 6 44 82 0.3 048 O. R. 13 14 77 124 0.55 130 O. R.
5 6 44 82 0.3 050 O. R. 14 14 77 124 0.6 140 O. R.
5.5 6 44 82 0.35 055 O. R. 15 16 83 133 0.6 150 O. R.
5.8 6 44 82 0.35 058 O. R. 15.5 16 83 133 0.6 155 O. R.
6 6 44 82 0.35 060 O. R. 16 16 83 133 0.6 160 O. R.
6.5 8 53 91 0.4 065 O. R. 17 18 93 143 0.6 170 O. R.
6.8 8 53 91 0.4 068 O. R. 17.5 18 93 143 0.6 175 O. R.
7 8 53 91 0.4 070 O. R. 18 18 93 143 0.65 180 O. R.
7.4 8 53 91 0.45 074 O. R. 20 20 101 143 0.7 200 (O. R.)
7.45 8 53 91 0.45 274 O. R. Unit price, €
Prod. group 134
High-performance drill, solid carbide ALU CC HPC 8xD DIN 6537
for use in non-ferrous metals and cast iron
HPC HA
VHM CC
ALU IK
8xD 135°
Application: specialised use with long service life for non-
For HPC boring for the material groups of non-fer- ferrous metals such as aluminium, brass, bronze
rous metals and cast iron in series production. and cast iron
6 drill heels ensure boring accuracy even at high
Execution: cutting speeds
high-performance drill, solid carbide ALU CC with latest coating technology: ALU-CC coating with
special geometry for machining non-ferrous metals outstanding contour seam on the blade ensures
and cast iron sharp cutting and excellent sliding performance for
Advantage: optimal chip removal, even at the highest cutting
speeds
special HPC cutting geometry: innovative cutting
geometry with 15° twist angle and 6 drill heels Notes:
provide optimum chip removal and long service life required coolant pressure: min. 12 bar
and high degree of process reliability
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11159 380 350 250 190 160 120 100 90
