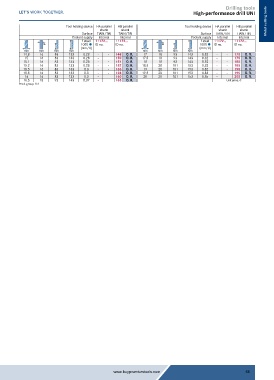

Page 66 - Buy Premium Tools ATORN Catalogue
P. 66
Drilling tools
High-performance drill UNI
Tool holding device HA parallel HB parallel Tool holding device HA parallel HB parallel Metal cutting tools
shank shank shank shank
Surface TiAlN/TiN TiAlN/TiN Surface TiAlN/TiN TiAlN/TiN
Coolant supply Internal Internal Coolant supply Internal Internal
f steel 11172... 11172... f steel 11172... 11172...
h6 1000 ID no. ID no. h6 1000 ID no. ID no.
(mm/U) (mm/U)
mm mm mm mm mm mm mm mm
14.8 16 83 133 0.28 - - 148 O. R. 17 18 93 143 0.32 - - 170 O. R.
15 16 83 133 0.28 - - 150 O. R. 17.5 18 93 143 0.32 - - 175 O. R.
15.1 16 83 133 0.28 - - 151 O. R. 18 18 93 143 0.32 - - 180 O. R.
15.2 16 83 133 0.28 - - 152 O. R. 18.5 20 101 153 0.32 - - 185 O. R.
15.5 16 83 133 0.3 - - 155 O. R. 19 20 101 153 0.32 - - 190 O. R.
15.8 16 83 133 0.3 - - 158 O. R. 19.5 20 101 153 0.33 - - 195 O. R.
16 16 83 133 0.3 - - 160 O. R. 20 20 101 153 0.35 - - 200 O. R.
16.5 18 93 143 0.32 - - 165 O. R. Unit price, €
Prod. group 113
www.buypremiumtools.com 66
