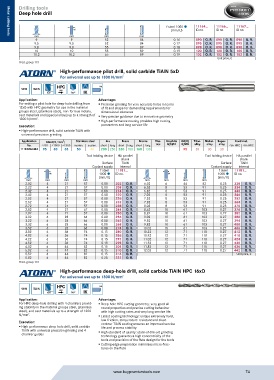

Drilling tools
Deep hole drill

f steel 1000 ˜ 11164... 11166... 11167...
h6 (mm/U) ID no. ID no. ID no.
mm mm mm mm
Metal cutting tools
Metal cutting tools
9 9 52 84 0.16 090 O. R. 090 O. R. 090 O. R.
9.5 9.5 52 84 0.17 095 O. R. 095 O. R. 095 O. R.
9.8 9.8 55 89 0.18 098 O. R. 098 O. R. 098 O. R.
10 10 55 89 0.19 100 O. R. 100 O. R. 100 O. R.
10.2 10.2 55 89 0.19 102 O. R. 102 O. R. 102 O. R.
Unit price, €
Prod. group 113
High-performance pilot drill, solid carbide TiAlN 5xD
For universal use up to 1300 N/mm 2
HPC HA
VHM TiAlN UNI
5xD 140° IK
Application: Advantage:
For setting a pilot hole for deep-hole drilling from ƒ Precision grinding for very accurate holes in terms
12xD with HPC geometry for use in the material of fit and shape for demanding requirements for
groups steel, (stainless steel), non-ferrous metals, dimensional tolerance
cast materials and (special alloys) up to a strength of ƒ Very precise guidance due to innovative geometry
1300 N/mm . 2 ƒ High-performance coating provides high cutting
Execution: parameters and long service life
ƒ High-performance drill, solid carbide TiAlN with
universal precision grinding
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11181202-442 95 80 65 50 40 200 250 230 180 160 130 95 35 30 30
Tool holding device HA parallel Tool holding device HA parallel
shank shank
Surface TiAlN Surface TiAlN
Coolant supply Internal Coolant supply Internal
f steel 11181... f steel 11181...
h6 1000 ˜ ID no. h6 1000 ˜ ID no.
(mm/U) (mm/U)
mm mm mm mm mm mm mm mm
2.02 4 21 57 0.08 202 O. R. 6.02 6 44 82 0.25 328 O. R.
2.22 4 21 57 0.08 208 O. R. 6.52 8 53 91 0.25 334 O. R.
2.32 4 21 57 0.08 214 O. R. 6.82 8 53 91 0.25 340 O. R.
2.42 4 21 57 0.08 220 O. R. 7.02 8 53 91 0.25 346 O. R.
2.52 4 21 57 0.08 226 O. R. 7.52 8 53 91 0.25 352 O. R.
2.62 4 21 57 0.08 232 O. R. 7.82 8 53 91 0.25 364 O. R.
2.72 4 21 57 0.08 238 O. R. 8.02 8 53 91 0.25 370 O. R.
2.82 4 21 57 0.08 244 O. R. 8.52 10 61 103 0.27 376 O. R.
2.92 4 21 57 0.08 250 O. R. 8.82 10 61 103 0.27 382 O. R.
3.02 6 28 66 0.08 256 O. R. 9.02 10 61 103 0.27 388 O. R.
3.22 6 28 66 0.08 262 O. R. 9.52 10 61 103 0.27 394 O. R.
3.32 6 28 66 0.08 268 O. R. 9.82 10 61 103 0.27 400 O. R.
3.52 6 28 66 0.08 274 O. R. 10.02 10 61 103 0.27 406 O. R.
3.82 6 36 74 0.15 280 O. R. 10.22 12 71 118 0.27 412 O. R.
4.02 6 36 74 0.15 286 O. R. 10.82 12 71 118 0.27 418 O. R.
4.22 6 36 74 0.15 292 O. R. 11.02 12 71 118 0.27 424 O. R.
4.52 6 36 74 0.15 298 O. R. 11.52 12 71 118 0.27 430 O. R.
4.82 6 44 82 0.15 304 O. R. 11.82 12 71 118 0.27 436 O. R.
5.02 6 44 82 0.15 310 O. R. 12.02 12 71 118 0.27 442 O. R.
5.52 6 44 82 0.15 316 O. R. Unit price, €
5.82 6 44 82 0.25 322 O. R.
Prod. group 113
High-performance deep-hole drill, solid carbide TiAlN HPC 16xD
For universal use up to 1300 N/mm 2
HPC HA
VHM TiAlN UNI
16xD 140° IK
Application: Advantage:
For HPC deep-hole drilling with 4 chamfers provid- ƒ Deep-hole HPC cutting geometry: very good all-
ing stability in the material groups steel, (stainless round properties and precise cutting behaviour
steel), and cast materials up to a strength of 1300 with high cutting rates and very long service life.
N/mm . 2 ƒ Latest coating technology: unique extremely hard,
Execution: low-friction, temperature-resistant and close
contour TiAlN coating ensures an improved service
ƒ High-performance deep-hole drill, solid carbide life and process stability
TiAlN with universal precision grinding and 4 ƒ High standard of quality: state-of-the-art grinding
chamfer guides technology guarantees high concentricity of the
tools and precision of the flute design for the tools
ƒ Cutting edge preparation minimises micro-frac-
tures on the flute
