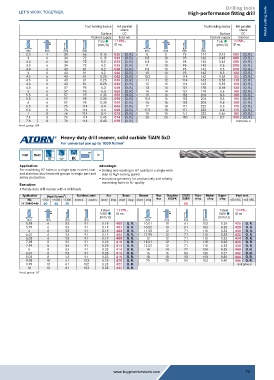

P. 72
Drilling tools
High-performance fitting drill
Tool holding device HA parallel Tool holding device HA parallel Metal cutting tools
shank shank
Surface CC Surface CC
Coolant supply Internal Coolant supply Internal
f alu 11159... f alu 11159...
h6 (mm/U) ID no. h6 (mm/U) ID no.
mm mm mm mm mm mm mm mm
2.5 4 30 66 0.15 025 (O. R.) 8 8 76 114 0.45 080 (O. R.)
3 6 34 72 0.15 030 (O. R.) 8.5 10 95 142 0.45 085 (O. R.)
3.3 6 34 72 0.2 033 (O. R.) 8.8 10 95 142 0.45 088 (O. R.)
3.5 6 34 72 0.2 035 (O. R.) 9 10 95 142 0.5 090 (O. R.)
3.8 6 43 81 0.2 038 (O. R.) 9.8 10 95 142 0.5 098 (O. R.)
4 6 43 81 0.2 040 (O. R.) 10 10 95 142 0.5 100 (O. R.)
4.2 6 43 81 0.25 042 (O. R.) 10.2 12 114 162 0.55 102 (O. R.)
4.5 6 43 81 0.25 045 (O. R.) 11 12 114 162 0.55 110 (O. R.)
4.6 6 43 81 0.25 046 (O. R.) 12 12 114 162 0.55 120 (O. R.)
4.8 6 57 95 0.3 048 (O. R.) 13 14 131 178 0.55 130 (O. R.)
5 6 57 95 0.3 050 (O. R.) 14 14 131 178 0.6 140 (O. R.)
5.5 6 57 95 0.35 055 (O. R.) 15 16 152 203 0.6 150 (O. R.)
5.8 6 57 95 0.35 058 (O. R.) 15.5 16 152 203 0.6 155 (O. R.)
6 6 57 95 0.35 060 (O. R.) 16 16 152 203 0.6 160 (O. R.)
6.5 8 76 114 0.4 065 (O. R.) 17 18 171 222 0.6 170 (O. R.)
6.8 8 76 114 0.4 068 (O. R.) 17.5 18 171 222 0.6 175 (O. R.)
7 8 76 114 0.4 070 (O. R.) 18 18 171 222 0.65 180 (O. R.)
7.4 8 76 114 0.45 074 (O. R.) 20 20 190 243 0.7 200 (O. R.)
7.8 8 76 114 0.45 078 (O. R.) Unit price, €
Prod. group 134
Heavy-duty drill reamer, solid carbide TiAlN 5xD
For universal use up to 1000 N/mm 2
HA
VHM TiAlN
5xD 140° IK
Application: Advantage:
For machining H7 holes in a single step in steel, cast Drilling and reaming in H7 quality in a single work
and stainless steel material groups in single part and step at high cutting speed
series production. Innovative geometry for productively and reliably
Execution: machining holes in H7 quality
Heady-duty drill reamer with 4 drill heels
Application Steel (N/mm ) Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
2
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11175400-446 60 45 30 50
f steel 11175... f steel 11175...
h6 1000 ID no. h6 1000 ID no.
(mm/U) (mm/U)
mm mm mm mm mm mm mm mm
5.98 6 53 91 0.19 400 O. R. 10.01 10 61 103 0.28 426 O. R.
5.99 6 53 91 0.19 402 O. R. 10.02 10 61 103 0.28 428 O. R.
6 6 53 91 0.19 404 O. R. 11.98 12 71 118 0.32 430 O. R.
6.01 6 53 91 0.19 406 O. R. 11.99 12 71 118 0.32 432 O. R.
6.02 6 53 91 0.19 408 O. R. 12 12 71 118 0.32 434 O. R.
7.98 8 53 91 0.23 410 O. R. 12.01 12 71 118 0.32 436 O. R.
7.99 8 53 91 0.23 412 O. R. 12.02 12 71 118 0.32 438 O. R.
8 8 53 91 0.23 414 O. R. 14 14 77 124 0.35 440 O. R.
8.01 8 53 91 0.23 416 O. R. 16 16 83 133 0.37 442 O. R.
8.02 8 53 91 0.23 418 O. R. 18 18 93 143 0.39 444 O. R.
9.98 10 61 103 0.28 420 O. R. 20 20 101 153 0.40 446 O. R.
9.99 10 61 102 0.28 422 O. R. Unit price, €
10 10 61 103 0.28 424 O. R.
Prod. group 117
