P. 14

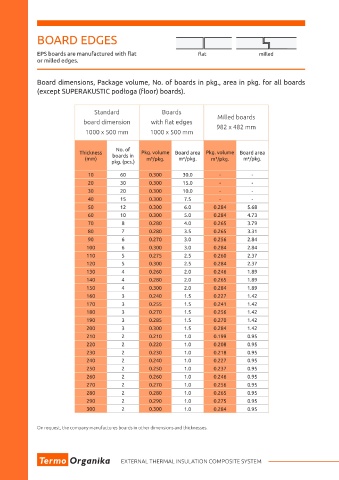

BOARD EDGES SPECIAL EPS
EPS boards are manufactured with flat flat milled
or milled edges. To apply at specific places in the building.
Board dimensions, Package volume, No. of boards in pkg., area in pkg. for all boards
(except SUPERAKUSTIC podłoga (floor) boards).
Standard Boards
Milled boards
board dimension with flat edges
982 x 482 mm
1000 x 500 mm 1000 x 500 mm
No. of
Thickness boards in Pkg. volume Board area Pkg. volume Board area
(mm) m³/pkg. m²/pkg. m³/pkg. m²/pkg.
pkg. (pcs.)
10 60 0.300 30.0 - -
20 30 0.300 15.0 - -
30 20 0.300 10.0 - -
40 15 0.300 7.5 - -
50 12 0.300 6.0 0.284 5.68
60 10 0.300 5.0 0.284 4.73 EPS SUPERAKUSTIC podłoga (floor)
70 8 0.280 4.0 0.265 3.79
80 7 0.280 3.5 0.265 3.31
90 6 0.270 3.0 0.256 2.84 4 for the insulation placed under the floor base in 4 floor systems with SUPERAKUSTIC podłoga (floor)
100 6 0.300 3.0 0.284 2.84 floating floors EPS boards may be used in residential (single-
4 suppresses impact sound and multi-family) buildings, general and public
110 5 0.275 2.5 0.260 2.37
4 to be used in rooms where the service load on buildings, both newly constructed and renovated
120 5 0.300 2.5 0.284 2.37
the levelling course does not exceed 4.0 kN/m
2
130 4 0.260 2.0 0.246 1.89 (400 kG/m )
2
140 4 0.280 2.0 0.265 1.89
150 4 0.300 2.0 0.284 1.89
160 3 0.240 1.5 0.227 1.42
170 3 0.255 1.5 0.241 1.42
180 3 0.270 1.5 0.256 1.42
190 3 0.285 1.5 0.270 1.42 λ D – declared thermal
conductivity coefficient
200 3 0.300 1.5 0.284 1.42 λ 0.045 W/(m·K) lambda [W/(m·K)].
210 2 0.210 1.0 0.199 0.95 D
220 2 0.220 1.0 0.208 0.95
230 2 0.230 1.0 0.218 0.95 Thickness mm* 17/15 22/20 27/25 33/30 38/35 43/40 53/50
240 2 0.240 1.0 0.227 0.95 No. of boards in pkg.(pcs.) 35 27 22 18 15 14 11
250 2 0.250 1.0 0.237 0.95 Package volume m³/pkg. 0.298 0.297 0.297 0.297 0.285 0.301 0.292
260 2 0.260 1.0 0.246 0.95 Board area m²/pkg. 17.50 13.50 11.00 9.00 7.50 7.00 5.50
270 2 0.270 1.0 0.256 0.95 Dynamic stiffness SD MN/m 3 40 30 30 30 20 20 20
280 2 0.280 1.0 0.265 0.95 Impact sound reduction coefficient
290 2 0.290 1.0 0.275 0.95 Δ (delta) Lw dB 27 29 30 32 32 33 34
300 2 0.300 1.0 0.284 0.95 Compressibility CP3 CP3 CP3 CP3 CP3 CP3 CP3
Service load 400 kG/m 2 400 kG/m 2 400 kG/m 2 400 kG/m 2 400 kG/m 2 400 kG/m 2 400 kG/m 2
On request, the company manufactures boards in other dimensions and thicknesses. * Thickness of SUPERAKUSTIC podłoga (floor) boards in mm before after loading with a concrete base layer of 50 mm.
EPS
EXTERNAL THERMAL INSULATION COMPOSITE SYSTEM EPS PLASTERS PAINTS ADHESIVES 15
