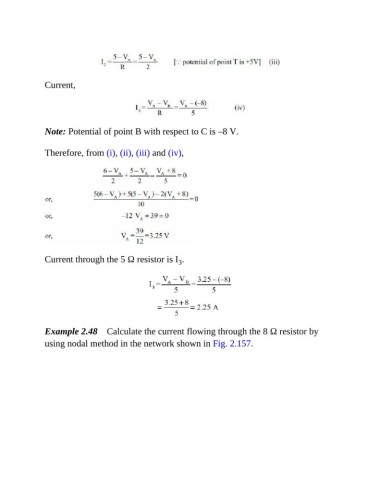

Page 230 - Basic Electrical Engineering
P. 230

Current,








               Note: Potential of point B with respect to C is –8 V.


               Therefore, from (i), (ii), (iii) and (iv),




















               Current through the 5 Ω resistor is I .
                                                          3











               Example 2.48    Calculate the current flowing through the 8 Ω resistor by
               using nodal method in the network shown in Fig. 2.157.
