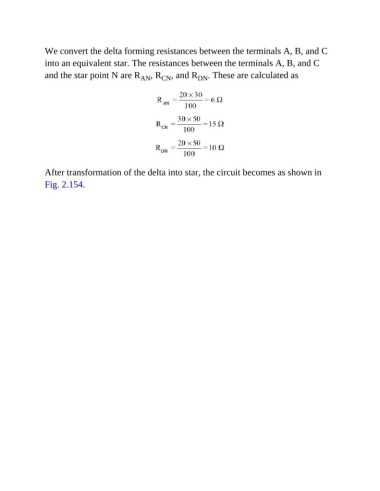

We convert the delta forming resistances between the terminals A, B, and C
into an equivalent star. The resistances between the terminals A, B, and C
and the star point N are R AN , R CN , and R DN . These are calculated as
After transformation of the delta into star, the circuit becomes as shown in
Fig. 2.154.
