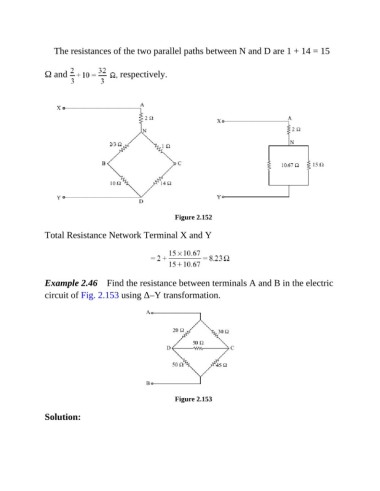

Page 226 - Basic Electrical Engineering
P. 226
The resistances of the two parallel paths between N and D are 1 + 14 = 15
Ω and respectively.
Figure 2.152
Total Resistance Network Terminal X and Y
Example 2.46 Find the resistance between terminals A and B in the electric
circuit of Fig. 2.153 using Δ–Y transformation.
Figure 2.153
Solution:
