Page 224 - Basic Electrical Engineering
P. 224

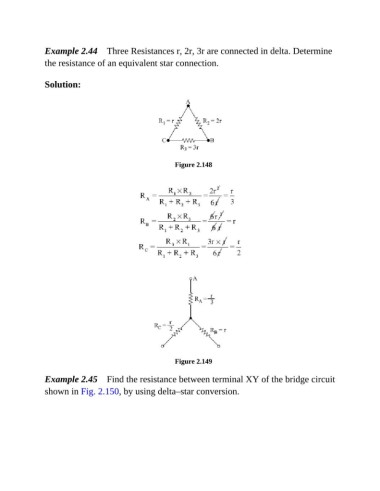

Example 2.44 Three Resistances r, 2r, 3r are connected in delta. Determine
the resistance of an equivalent star connection.
Solution:
Figure 2.148
Figure 2.149
Example 2.45 Find the resistance between terminal XY of the bridge circuit
shown in Fig. 2.150, by using delta–star conversion.
