P. 222

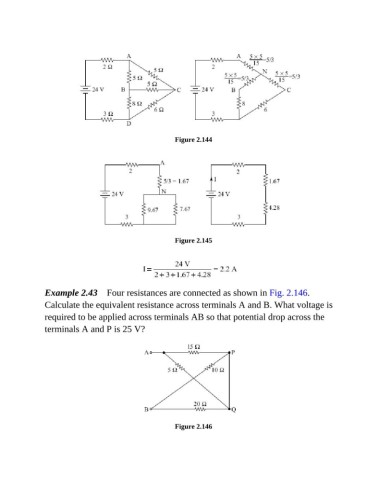

Figure 2.144
Figure 2.145
Example 2.43 Four resistances are connected as shown in Fig. 2.146.
Calculate the equivalent resistance across terminals A and B. What voltage is
required to be applied across terminals AB so that potential drop across the
terminals A and P is 25 V?
Figure 2.146
