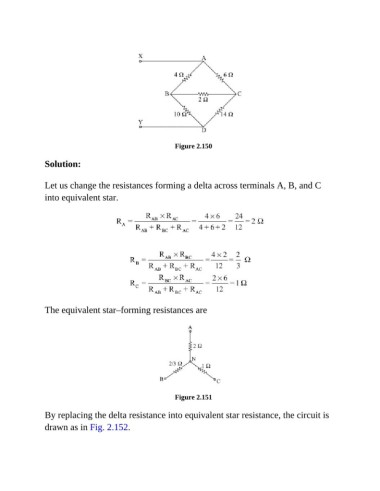

Figure 2.150
Solution:
Let us change the resistances forming a delta across terminals A, B, and C
into equivalent star.
The equivalent star–forming resistances are
Figure 2.151
By replacing the delta resistance into equivalent star resistance, the circuit is
drawn as in Fig. 2.152.
