P. 255

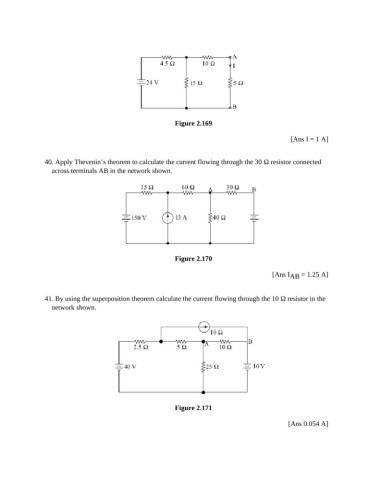

Figure 2.169
[Ans I = 1 A]
40. Apply Thevenin’s theorem to calculate the current flowing through the 30 Ω resistor connected
across terminals AB in the network shown.
Figure 2.170
[Ans I AB = 1.25 A]
41. By using the superposition theorem calculate the current flowing through the 10 Ω resistor in the
network shown.
Figure 2.171
[Ans 0.054 A]
