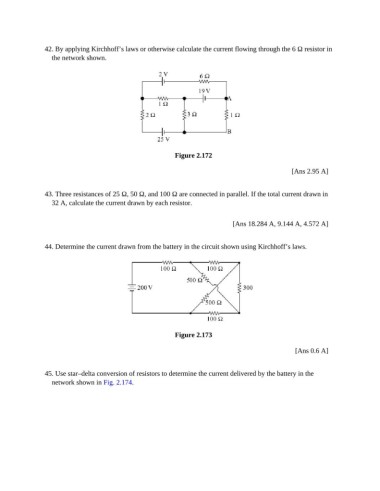

Page 256 - Basic Electrical Engineering
P. 256
42. By applying Kirchhoff’s laws or otherwise calculate the current flowing through the 6 Ω resistor in
the network shown.
Figure 2.172
[Ans 2.95 A]
43. Three resistances of 25 Ω, 50 Ω, and 100 Ω are connected in parallel. If the total current drawn in
32 A, calculate the current drawn by each resistor.
[Ans 18.284 A, 9.144 A, 4.572 A]
44. Determine the current drawn from the battery in the circuit shown using Kirchhoff’s laws.
Figure 2.173
[Ans 0.6 A]
45. Use star–delta conversion of resistors to determine the current delivered by the battery in the
network shown in Fig. 2.174.
