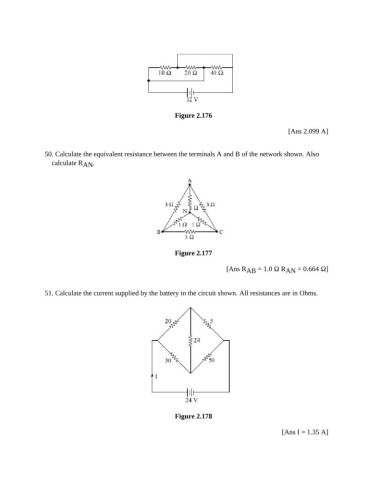

Figure 2.176
[Ans 2.099 A]
50. Calculate the equivalent resistance between the terminals A and B of the network shown. Also
calculate R AN .
Figure 2.177
[Ans R AB = 1.0 Ω R AN = 0.664 Ω]
51. Calculate the current supplied by the battery in the circuit shown. All resistances are in Ohms.
Figure 2.178
[Ans I = 1.35 A]
