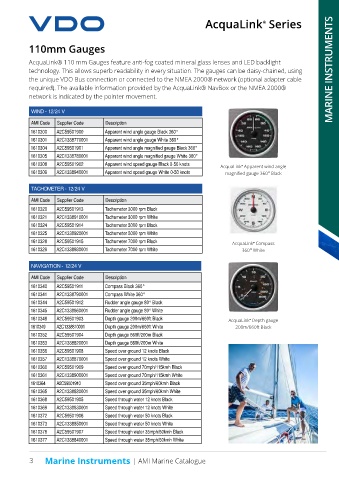

AcquaLink® Series

110mm Gauges

AcquaLink® 110 mm Gauges feature anti-fog coated mineral glass lenses and LED backlight
technology. This allows superb readability in every situation. The gauges can be daisy-chained, using MARINE INSTRUMENTS
the unique VDO Bus connection or connected to the NMEA 2000® network (optional adapter cable
required). The available information provided by the AcquaLink® NavBox or the NMEA 2000®
network is indicated by the pointer movement.

WIND - 12/24 V
AMI Code Supplier Code Description
1610300 A2C59501900 Apparent wind angle gauge Black 360°
1610301 A2C1338770001 Apparent wind angle gauge White 360°
1610304 A2C59501901 Apparent wind angle magnified gauge Black 360°
1610305 A2C1338780001 Apparent wind angle magnified gauge White 360°
1610308 A2C59501902 Apparent wind speed gauge Black 0-50 knots AcquaLink® Apparent wind angle
1610309 A2C1338940001 Apparent wind speed gauge White 0-50 knots magnified gauge 360° Black

TACHOMETER - 12/24 V

AMI Code Supplier Code Description
1610320 A2C59501913 Tachometer 3000 rpm Black
1610321 A2C1338910001 Tachometer 3000 rpm White
1610324 A2C59501914 Tachometer 5000 rpm Black
1610325 A2C1338920001 Tachometer 5000 rpm White
1610328 A2C59501915 Tachometer 7000 rpm Black AcquaLink® Compass
1610329 A2C1338930001 Tachometer 7000 rpm White 360° White

NAVIGATION - 12/24 V

AMI Code Supplier Code Description
1610340 A2C59501911 Compass Black 360°
1610341 A2C1338790001 Compass White 360°
1610344 A2C59501912 Rudder angle gauge 80° Black
1610345 A2C1338860001 Rudder angle gauge 80° White
1610348 A2C59501903 Depth gauge 200m/660ft Black AcquaLink® Depth gauge
1610349 A2C1338810001 Depth gauge 200m/660ft White 200m/660ft Black
1610352 A2C59501904 Depth gauge 660ft/200m Black
1610353 A2C1338820001 Depth gauge 660ft/200m White
1610356 A2C59501908 Speed over ground 12 knots Black
1610357 A2C1338870001 Speed over ground 12 knots White
1610360 A2C59501909 Speed over ground 70mph/115kmh Black
1610361 A2C1338900001 Speed over ground 70mph/115kmh White
1610364 A2C59501910 Speed over ground 35mph/60kmh Black
1610365 A2C1338880001 Speed over ground 35mph/60kmh White
1610368 A2C59501905 Speed through water 12 knots Black
1610369 A2C1338830001 Speed through water 12 knots White
1610372 A2C59501906 Speed through water 50 knots Black
1610373 A2C1338850001 Speed through water 50 knots White
1610376 A2C59501907 Speed through water 35mph/60kmh Black
1610377 A2C1338840001 Speed through water 35mph/60kmh White
