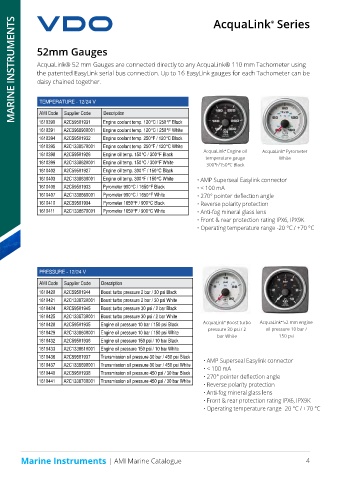

DYNAMIC TRIM CONTROL SYSTEMS
AcquaLink® Series
MARINE INSTRUMENTS

52mm Gauges

AcquaLink® 52 mm Gauges are connected directly to any AcquaLink® 110 mm Tachometer using
the patented EasyLink serial bus connection. Up to 16 EasyLink gauges for each Tachometer can be
daisy chained together.

TEMPERATURE - 12/24 V
AMI Code Supplier Code Description
1610390 A2C59501931 Engine coolant temp. 120°C / 250°F Black
1610391 A2C3968900001 Engine coolant temp. 120°C / 250°F White
1610394 A2C59501932 Engine coolant temp. 250°F / 120°C Black
1610395 A2C1338570001 Engine coolant temp. 250°F / 120°C White
1610398 A2C59501926 Engine oil temp. 150°C / 300°F Black AcquaLink® Engine oil AcquaLink® Pyrometer
temperature gauge
White
1610399 A2C1338620001 Engine oil temp. 150°C / 300°F White 300°F/150°C Black
1610402 A2C59501927 Engine oil temp. 300°F / 150°C Black
1610403 A2C1338630001 Engine oil temp. 300°F / 150°C White • AMP Superseal Easylink connector
1610406 A2C59501933 Pyrometer 900°C / 1650°F Black • < 100 mA
1610407 A2C1338660001 Pyrometer 900°C / 1650°F White • 270° pointer deflection angle
1610410 A2C59501934 Pyrometer 1650°F / 900°C Black • Reverse polarity protection
1610411 A2C1338670001 Pyrometer 1650°F / 900°C White • Anti-fog mineral glass lens
• Front & rear protection rating IPX6, IPX9K
• Operating temperature range -20 °C / +70 °C

PRESSURE - 12/24 V
AMI Code Supplier Code Description
1610420 A2C59501944 Boost turbo pressure 2 bar / 30 psi Black
1610421 A2C1338720001 Boost turbo pressure 2 bar / 30 psi White
1610424 A2C59501945 Boost turbo pressure 30 psi / 2 bar Black
1610425 A2C1338730001 Boost turbo pressure 30 psi / 2 bar White
1610428 A2C59501935 Engine oil pressure 10 bar / 150 psi Black AcquaLink® Boost turbo AcquaLink® 52 mm engine
1610429 A2C1338600001 Engine oil pressure 10 bar / 150 psi White pressure 30 psi / 2 oil pressure 10 bar /
150 psi
bar White
1610432 A2C59501936 Engine oil pressure 150 psi / 10 bar Black
1610433 A2C1338610001 Engine oil pressure 150 psi / 10 bar White
1610436 A2C59501937 Transmission oil pressure 30 bar / 450 psi Black • AMP Superseal Easylink connector
1610437 A2C1338690001 Transmission oil pressure 30 bar / 450 psi White • < 100 mA
1610440 A2C59501938 Transmission oil pressure 450 psi / 30 bar Black • 270° pointer deflection angle
1610441 A2C1338700001 Transmission oil pressure 450 psi / 30 bar White
• Reverse polarity protection
• Anti-fog mineral glass lens
• Front & rear protection rating IPX6, IPX9K
• Operating temperature range -20 °C / +70 °C
