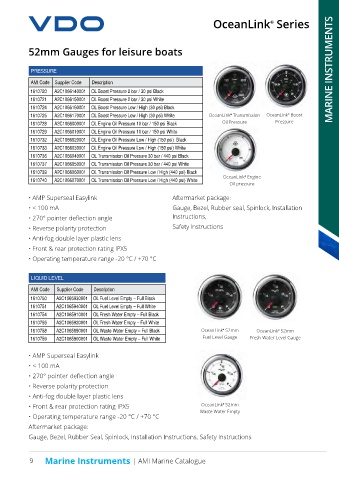

OceanLink® Series

52mm Gauges for leisure boats

PRESSURE MARINE INSTRUMENTS
AMI Code Supplier Code Description
1610720 A2C1066140001 OL Boost Pressure 2 bar / 30 psi Black
1610721 A2C1066150001 OL Boost Pressure 2 bar / 30 psi White
1610724 A2C1066160001 OL Boost Pressure Low / High (30 psi) Black
1610725 A2C1066170001 OL Boost Pressure Low / High (30 psi) White OceanLink® Transmission OceanLink® Boost
1610728 A2C1066000001 OL Engine Oil Pressure 10 bar / 150 psi Black Oil Pressure Pressure
1610729 A2C1066010001 OL Engine Oil Pressure 10 bar / 150 psi White
1610732 A2C1066020001 OL Engine Oil Pressure Low / High (150 psi) Black
1610733 A2C1066030001 OL Engine Oil Pressure Low / High (150 psi) White
1610736 A2C1066040001 OL Transmission Oil Pressure 30 bar / 440 psi Black
1610737 A2C1066050001 OL Transmission Oil Pressure 30 bar / 440 psi White
1610739 A2C1066060001 OL Transmission Oil Pressure Low / High (440 psi) Black
1610740 A2C1066070001 OL Transmission Oil Pressure Low / High (440 psi) White OceanLink® Engine
Oil pressure
• AMP Superseal Easylink Aftermarket package:

• < 100 mA Gauge, Bezel, Rubber seal, Spinlock, Installation
• 270° pointer deflection angle Instructions,
• Reverse polarity protection Safety Instructions
• Anti-fog double layer plastic lens

• Front & rear protection rating IPX5
• Operating temperature range -20 °C / +70 °C

LIQUID LEVEL

AMI Code Supplier Code Description
1610750 A2C1065930001 OL Fuel Level Empty – Full Black
1610751 A2C1065940001 OL Fuel Level Empty – Full White
1610754 A2C1065910001 OL Fresh Water Empty – Full Black
1610755 A2C1065920001 OL Fresh Water Empty – Full White
1610758 A2C1065890001 OL Waste Water Empty – Full Black OceanLink® 52mm OceanLink® 52mm
1610759 A2C1065900001 OL Waste Water Empty – Full White Fuel Level Gauge Fresh Water Level Gauge

• AMP Superseal Easylink
• < 100 mA

• 270° pointer deflection angle
• Reverse polarity protection
• Anti-fog double layer plastic lens
• Front & rear protection rating IPX5 OceanLink® 52mm
Waste Water Empty
• Operating temperature range -20 °C / +70 °C
Aftermarket package:
Gauge, Bezel, Rubber Seal, Spinlock, Installation Instructions, Safety Instructions

9 Marine Instruments | AMI Marine Catalogue
