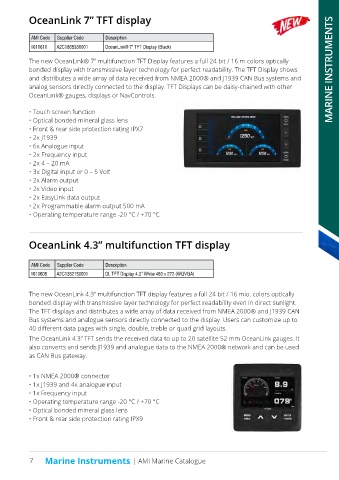

OceanLink 7” TFT display

AMI Code Supplier Code Description

1610610 A2C1865330001 OceanLink® 7” TFT Display (Black)
The new OceanLink® 7” multifunction TFT Display features a full 24 bit / 16 m colors optically
bonded display with transmissive layer technology for perfect readability. The TFT Display shows MARINE INSTRUMENTS
and distributes a wide array of data received from NMEA 2000® and J1939 CAN Bus systems and
analog sensors directly connected to the display. TFT Displays can be daisy-chained with other
OceanLink® gauges, displays or NavControls.

• Touch screen function
• Optical bonded mineral glass lens
• Front & rear side protection rating IPX7
• 2x J1939
• 6x Analogue input
• 2x Frequency input
• 2x 4 – 20 mA
• 3x Digital input or 0 – 5 Volt
• 2x Alarm output
• 2x Video input
• 2x EasyLink data output
• 2x Programmable alarm output 500 mA
• Operating temperature range -20 °C / +70 °C

OceanLink 4.3” multifunction TFT display

AMI Code Supplier Code Description
1610605 A2C1352150001 OL TFT Display 4.3’’ White 480 x 272 (WQVGA)

The new OceanLink 4.3” multifunction TFT display features a full 24 bit / 16 mio. colors optically
bonded display with transmissive layer technology for perfect readability even in direct sunlight.
The TFT displays and distributes a wide array of data received from NMEA 2000® and J1939 CAN
Bus systems and analogue sensors directly connected to the display. Users can customize up to
40 different data pages with single, double, treble or quad grid layouts.
The OceanLink 4.3” TFT sends the received data to up to 20 satellite 52 mm OceanLink gauges. It
also converts and sends J1939 and analogue data to the NMEA 2000® network and can be used
as CAN Bus gateway.

• 1x NMEA 2000® connector
• 1x J1939 and 4x analogue input
• 1x Frequency input
• Operating temperature range -20 °C / +70 °C
• Optical bonded mineral glass lens
• Front & rear side protection rating IPX9
