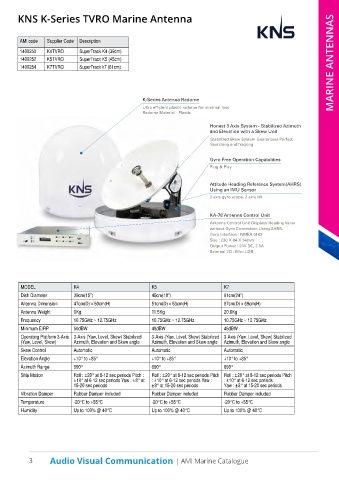

KNS K-Series TVRO Marine Antenna

AMI code Supplier Code Description
1400250 _SERIES THE NEW STANDARD OF MARITIME COMMUNICATION
SuperTrack K4 (39cm)
K4TVRO
1400252 K5TVRO SuperTrack K5 (45cm)
1400254 K7TVRO SuperTrack k7 (61cm) MARINE ANTENNAS
_SERIES
The K-Series antenna brings high quality satellite television
to your vessel.
The TVRO K-Series antennas are compatible with DVB-S2 K-Series Antenna Radome
KU-BAND and the DiSEqc 1.2 function allows automatic switching between Ultra efficient plastic radome for minimal loss.
four satellites. The K-Series is a competitively priced antenna that is Radome Material - Plastic
TVRO based on the same technology as the Z-Series, providing exceptional
tracking ability, and is ideal for private and smaller vessels. Honest 3 Axis System - Stabilized Azimuth
and Elevation with a Skew Unit
Stabilized Skew System Guarantees Perfect
Searching and Tracking

Gyro Free Operation Capabilities
Plug & Play

Attitude Heading Reference System(AHRS)
Using an IMU Sensor
3 axis gyro scope, 2 axis tilt

KA-78 Antenna Control Unit
Antenna Control Unit Displays Heading Value
without Gyro Connection Using AHRS.
Gyro Interface : NMEA 0183
Size : 230 X 84 X 34mm
Output Power : 24V DC, 2.5A
External I/O : Mini USB

MODEL K4 K5 K7
Dish Diameter 39cm(15”) 45cm(18”) 61cm(24”)
Antenna Dimension 47cm(D) x 50cm(H) 51cm(D) x 53cm(H) 67cm(D) x 69cm(H)
Antenna Weight 9Kg 11.5Kg 20.6Kg
Frequency 10.75GHz ~ 12.75GHz 10.75GHz ~ 12.75GHz 10.75GHz ~ 12.75GHz
Minimum EIRP 50dBW 48dBW 46dBW
Operating Platform 3-Axis 3-Axis (Yaw, Level, Skew) Stabilized 3-Axis (Yaw, Level, Skew) Stabilized 3-Axis (Yaw, Level, Skew) Stabilized
(Yaw, Level, Skew) Azimuth, Elevation and Skew angle Azimuth, Elevation and Skew angle Azimuth, Elevation and Skew angle
Skew Control Automatic Automatic Automatic
30 31
Elevation Angle +10° to +85° +10° to +85° +10° to +85°
Azimuth Range 690° 690° 690°
Ship Motion Roll : ±20° at 8-12 sec periods Pitch : Roll : ±20° at 8-12 sec periods Pitch Roll : ±20° at 8-12 sec periods Pitch
±10° at 6-12 sec periods Yaw : ±8° at : ±10° at 6-12 sec periods Yaw : : ±10° at 6-12 sec periods
15-20 sec periods ±8° at 15-20 sec periods Yaw : ±8° at 15-20 sec periods
Vibration Damper Rubber Damper included Rubber Damper included Rubber Damper included
Temperature -20°C to +55°C -20°C to +55°C -20°C to +55°C
Humidity Up to 100% @ 40°C Up to 100% @ 40°C Up to 100% @ 40°C
