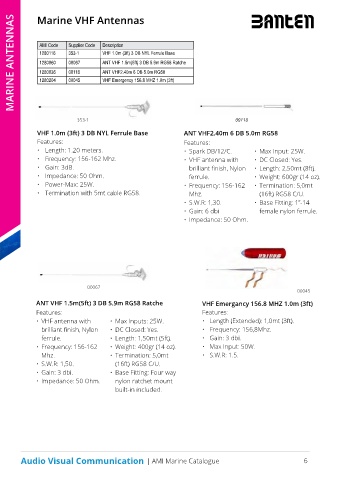

MARINE ANTENNAS Marine VHF Antennas
DYNAMIC TRIM CONTROL SYSTEMS

Description
Supplier Code
AMI Code
353-1
1280116
VHF 1.0m (3ft) 3 DB NYL Ferrule Base
ANT VHF 1.5m(5ft) 3 DB 5.9m RG58 Ratche
00067
1280060
1280036
ANT VHF2.40m 6 DB 5.0m RG58
00118
VHF Emergency 156.8 MHZ 1.0m (3ft)
1280204
00045

353-1 00118
VHF 1.0m (3ft) 3 DB NYL Ferrule Base ANT VHF2.40m 6 DB 5.0m RG58
Features: Features:
• Length: 1.20 meters. • Spark DB/12/C. • Max Input: 25W.
• Frequency: 156-162 Mhz. • VHF antenna with • DC Closed: Yes.
• Gain: 3dB. brilliant finish, Nylon • Length: 2,50mt (8ft).

• Impedance: 50 Ohm. ferrule. • Weight: 600gr (14 oz).
• Power-Max: 25W. • Frequency: 156-162 • Termination: 5,0mt

• Termination with 5mt cable RG58. Mhz. (16ft) RG58 C/U.
• S.W.R: 1,30. • Base Fitting: 1”-14
• Gain: 6 dbi female nylon ferrule.
• Impedance: 50 Ohm.

00067
00045

ANT VHF 1.5m(5ft) 3 DB 5.9m RG58 Ratche VHF Emergancy 156.8 MHZ 1.0m (3ft)
Features: Features:
• VHF antenna with • Max Inputs: 25W. • Length (Extended): 1,0mt (3ft).
brilliant finish, Nylon • DC Closed: Yes. • Frequency: 156,8Mhz.
ferrule. • Length: 1,50mt (5ft). • Gain: 3 dbi.
• Frequency: 156-162 • Weight: 400gr (14 oz). • Max Input: 50W.
Mhz. • Termination: 5,0mt • S.W.R: 1.5.
• S.W.R: 1,50. (16ft) RG58 C/U.
• Gain: 3 dbi. • Base Fitting: Four way
• Impedance: 50 Ohm. nylon ratchet mount
built-in included.
