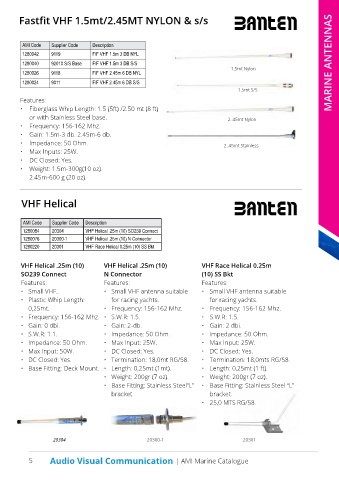

Fastfit VHF 1.5mt/2.45MT NYLON & s/s

AMI Code Supplier Code Description
1280042 9119 F/F VHF 1.5m 3 DB NYL
1280040 92010 S/S Base F/F VHF 1.5m 3 DB S/S MARINE ANTENNAS
1.5mt Nylon
1280026 9118 F/F VHF 2.45m 6 DB NYL
1280024 9011 F/F VHF 2.45m 6 DB S/S
1.5mt S/S
Features:
• Fiberglass Whip Length: 1.5 (5ft) /2.50 mt (8 ft)
or with Stainless Steel base. 2..45mt Nylon
• Frequency: 156-162 Mhz.

• Gain: 1.5m-3 db. 2.45m-6 db.
• Impedance: 50 Ohm. 2..45mt Stainless
• Max Inputs: 25W.
• DC Closed: Yes.
• Weight: 1.5m-300g(10 oz).
2.45m-600 g (20 oz).

VHF Helical

AMI Code Supplier Code Description
1280084 20304 VHF Helical .25m (10) SO239 Connect
1280076 20300-1 VHF Helical .25m (10) N Connector
1280220 20301 VHF Race Helical 0.25m (10) SS Bkt

VHF Helical .25m (10) VHF Helical .25m (10) VHF Race Helical 0.25m
SO239 Connect N Connector (10) SS Bkt
Features: Features: Features:
• Small VHF. • Small VHF antenna suitable • Small VHF antenna suitable
• Plastic Whip Length: for racing yachts. for racing yachts.
0,25mt. • Frequency: 156-162 Mhz. • Frequency: 156-162 Mhz.
• Frequency: 156-162 Mhz. • S.W.R: 1.5. • S.W.R: 1.5.

• Gain: 0 dbi. • Gain: 2-db. • Gain: 2 dbi.

• S.W.R: 1.1. • Impedance: 50 Ohm. • Impedance: 50 Ohm.

• Impedance: 50 Ohm. • Max Input: 25W. • Max Input: 25W.

• Max Input: 50W. • DC Closed: Yes. • DC Closed: Yes.

• DC Closed: Yes. • Termination: 18,0mt RG/58. • Termination: 18,0mts RG/58.
• Base Fitting: Deck Mount. • Length: 0,25mt (1mt). • Length: 0,25mt (1 ft).
• Weight: 200gr (7 oz). • Weight: 200gr (7 oz).
• Base Fitting: Stainless Steel”L” • Base Fitting: Stainless Steel “L”

bracket bracket.

• 25,0 MTS RG/58.

20304 20300-1 20301
