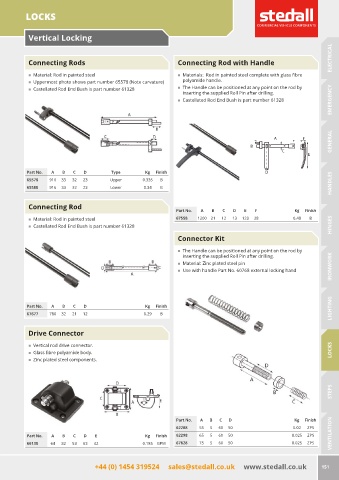

Page 153 - Stedall Parts Catalogue 14th Edition

LOCKS

Vertical Locking

ELECTRICAL

Connecting Rods Connecting Rod with Handle

„ Material: Rod in painted steel „ Materials: Rod in painted steel complete with glass fibre
„ Uppermost photo shows part number 65578 (Note curvature) polyamide handle.
„ Castellated Rod End Bush is part number 61328 „ The Handle can be positioned at any point on the rod by
inserting the supplied Roll Pin after drilling.
„ Castellated Rod End Bush is part number 61328 EMERGENCY

A F GENERAL
B
C
E

Part No. A B C D Type Kg Finish D
65578 916 33 32 23 Upper 0.335 B HANDLES
65588 916 33 32 23 Lower 0.34 B

Connecting Rod
Part No. A B C D E F Kg Finish
„ Material: Rod in painted steel 67558 1200 21 12 13 128 28 0.48 B
„ Castellated Rod End Bush is part number 61328 HINGES
Connector Kit

„ The Handle can be positioned at any point on the rod by
inserting the supplied Roll Pin after drilling.
„ Material: Zinc plated steel pin IRONWORK
„ Use with handle Part No. 60768 external locking hand

LIGHTING
Part No. A B C D Kg Finish
67677 780 32 21 12 0.29 B

Drive Connector

„ Vertical rod drive connector.
„ Glass fibre polyamide body. LOCKS
„ Zinc plated steel components.

STEPS

Part No. A B C D Kg Finish
62288 55 5 60 50 0.02 ZPS
Part No. A B C D E Kg Finish 62298 65 5 60 50 0.025 ZPS VENTILATION
66138 64 82 53 63 42 0.185 BPM 67628 75 5 60 50 0.025 ZPS

+44 (0) 1454 319524 sales@stedall.co.uk www.stedall.co.uk 151
