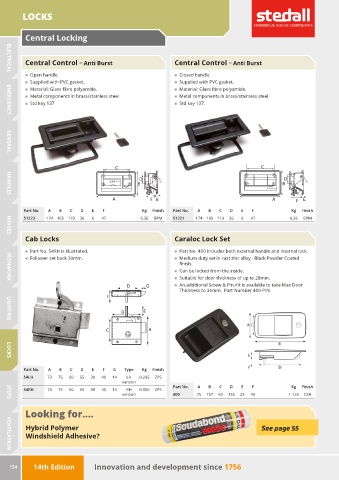

Page 156 - Stedall Parts Catalogue 14th Edition

LOCKS

Central Locking

Central Control — Anti Burst Central Control — Anti Burst

ELECTRICAL
„ Open handle „ Closed handle
„ Supplied with PVC gasket. „ Supplied with PVC gasket.
„ Material: Glass fibre polyamide. „ Material: Glass fibre polyamide.
„ Metal components in brass/stainless steel „ Metal components in brass/stainless steel.
„ Std key 137 „ Std key 137.

EMERGENCY

GENERAL
C C

D D
B B

HANDLES
A F E A F E
Part No. A B C D E F Kg Finish Part No. A B C D E F Kg Finish

51223 174 105 119 36 6 47 0.36 BPM 51221 174 105 119 36 6 47 0.36 BPM

Cab Locks Caraloc Lock Set
HINGES

„ Part No. 54RH is illustrated. „ Part No. 400 includes both external handle and internal lock.
„ Follower set back 30mm. „ Medium duty set in cast zinc alloy - Black Powder Coated
finish.
„ Can be locked from the inside.
„ Suitable for door thickness of up to 28mm.
IRONWORK
D G „ An additional Screw & Pin Kit is available to take Max Door
Thickness to 36mm. Part Number 400-PIN.
F

B E
LIGHTING
C A

LOCKS
Part No. A B C D E F G Type Kg Finish
54LH 73 75 60 55 30 40 14 LH 0.295 ZPS
version
Part No. A B C D E F Kg Finish
54RH 73 75 60 55 30 40 14 RH 0.305 ZPS
version 400 76 157 63 135 23 16 1.125 CZA
STEPS
Looking for....

Hybrid Polymer See page 55
Windshield Adhesive?
